Description
Ceratizit Article Number: 4980512600
Ceratizit Material Number: 14635405
Ceratizit Komet Number (Unpacked): 340.700130U0096
Ceratizit Komet Number (Packed): 340700130U0096
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

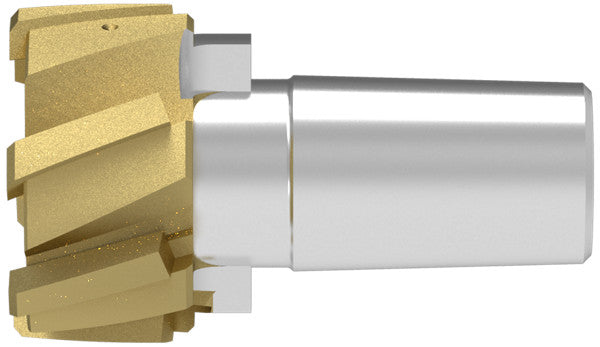

| Name | Ceratizit D012.6000M H7 ASG05 CoreLine - Rapid Set Head 4980512600 | |
| EDP # | 0782097 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |

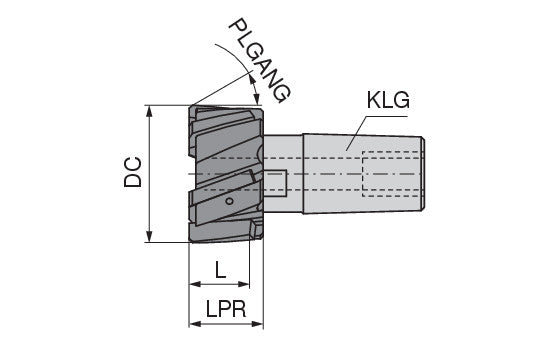

| Cutting diameter / DC | 0.4961" | 12.600 mm |
| Cutting edge length / L | 0.4134" | 10.500 mm |
| Protruding length / LPR | 0.4331" | 11.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4.0000" | 101.600 mm |
| Coupling Size | 2.0000" | 50.800 mm |
| Premachined hole diameter / PHD | DC-0.1417 | |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
