Description
Ceratizit Article Number: 1191025900
Ceratizit Material Number: 14700468
Ceratizit Komet Number (Unpacked): 1H30259001PFR0
Ceratizit Komet Number (Packed): 1H30259001PFR0
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

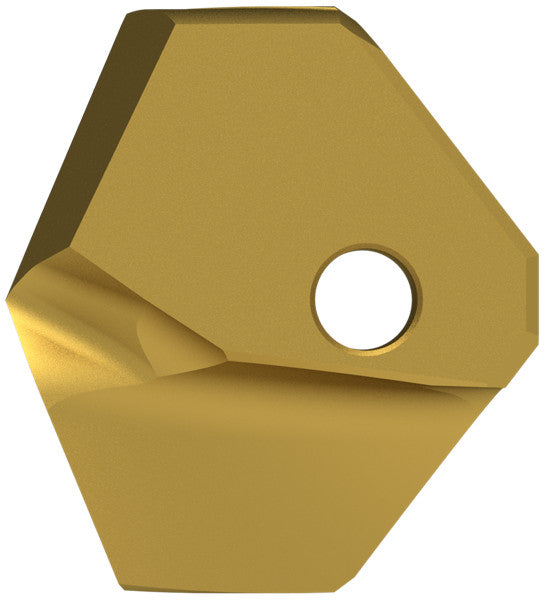

| Name | Ceratizit WPC-CHANGE-UNI.25,90.R.TPX74S CoreLine Indexable Insert For indexable Insert Drill 1191025900 | |
| EDP # | 0782756 | |
| Weight (1 pc.) | 1.0 oz | 41.0 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Stack plate drilling | |

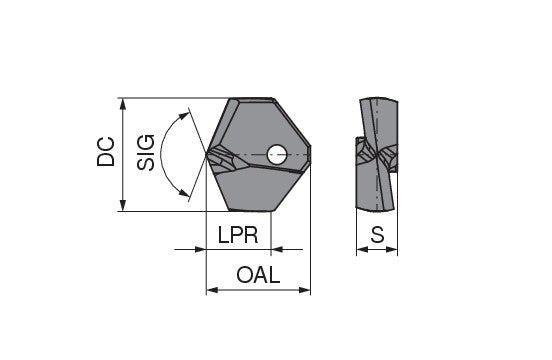

| Cutting diameter / DC m7 | 1.0197" | 25.900 mm |
| Overall length / OAL | 0.9055" | 23.000 mm |
| Protruding length / LPR | 0.5520" | 14.020 mm |
| Insert thickness / S | 0.3386" | 8.600 mm |
| SIG / SIG | 135 ° | |
| Coating name / Grade (Ceratizit) / COATN | TPX74S | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
