Description
Ceratizit Article Number: 1190317000
Ceratizit Material Number: 14700733
Ceratizit Komet Number (Unpacked): U72 01700
Ceratizit Komet Number (Packed): U7201700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

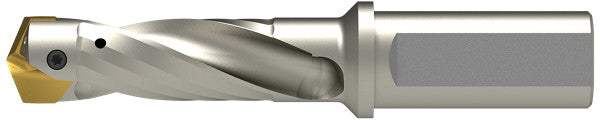

| Name | Ceratizit WPC-CHANGE.17,00-17,49.R.3D.IK.C20 CoreLine Holder For indexable Insert Drill 1190317000 | |
| EDP # | 0782795 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 7.0 oz | 190 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Stack plate drilling | |

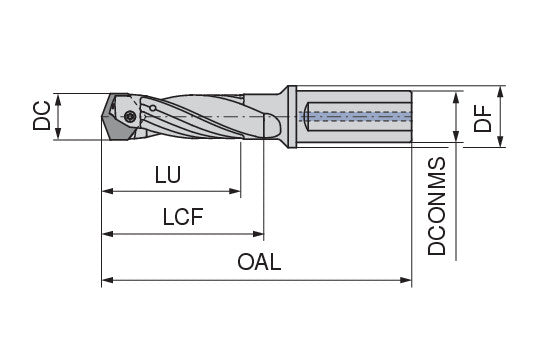

| Cutting edge Ø - range / DC | 17.00 - 17.49 | |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| Overall length / OAL | 4.8622" | 123.500 mm |
| Length chip flute / LCF | 2.4134" | 61.300 mm |
| Usable length / LU | 2.0669" | 52.500 mm |
| Flange diameter / DF | 0.9843" | 25.000 mm |
| Protruding length / LPR | 2.8937" | 73.500 mm |
| nominal size / SZID | 2.0000" | 50.800 mm |
| Insert thickness total / S1 | 0.2283" | 5.800 mm |
| torque moment | 1.2 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
