Description
Ceratizit Article Number: 1190322500
Ceratizit Material Number: 14700744
Ceratizit Komet Number (Unpacked): U72 02250
Ceratizit Komet Number (Packed): U7202250
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

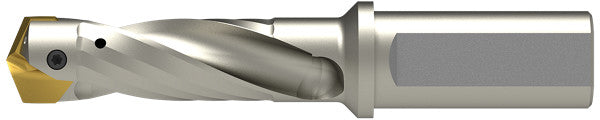

| Name | Ceratizit WPC-CHANGE.22,50-22,99.R.3D.IK.C25 CoreLine Holder For indexable Insert Drill 1190322500 | |
| EDP # | 0782806 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 13.0 oz | 360 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Stack plate drilling | |

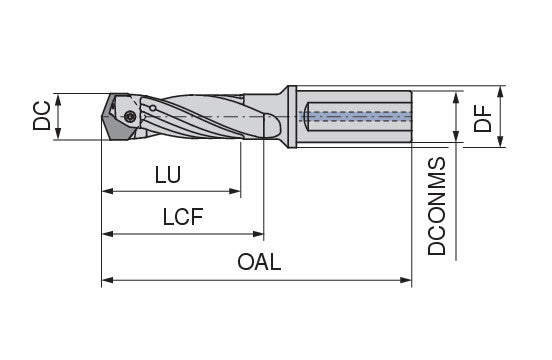

| Cutting edge Ø - range / DC | 22.50 - 22.99 | |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| Overall length / OAL | 6.0079" | 152.600 mm |
| Length chip flute / LCF | 3.1693" | 80.500 mm |
| Usable length / LU | 2.7165" | 69.000 mm |
| Flange diameter / DF | 1.1811" | 30.000 mm |
| Protruding length / LPR | 3.8031" | 96.600 mm |
| nominal size / SZID | 5.0000" | 127.000 mm |
| Insert thickness total / S1 | 0.3110" | 7.900 mm |
| torque moment | 3.2 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
