Description
Ceratizit Article Number: 7100070502
Ceratizit Material Number: 14703865
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

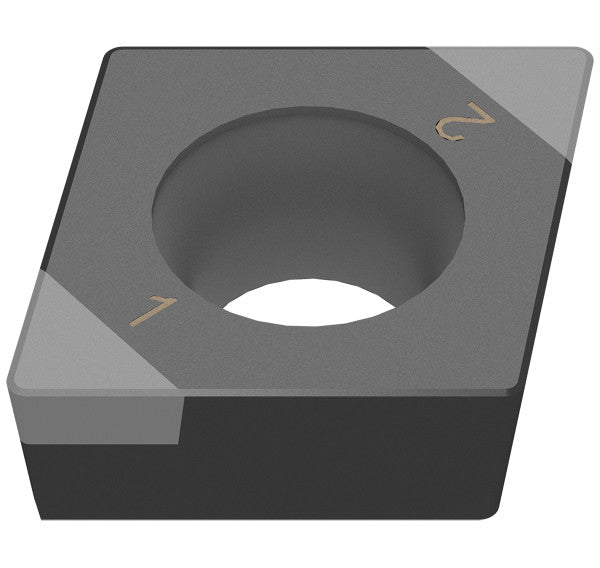

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CCGW 060204SN-014D_B3-R CTBH1000C CoreLine PcBN Turning indexable Insert 7100070502 | |
| EDP # | 0782825 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| designation | 060204SN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2539" | 6.450 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 21.51SN | ||
| support chamfer angle / GB | 20 ° | |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1142" | 2.900 mm |
| Face land width / BN | 0.0055" | 0.140 mm |
| Size | 6.0000" | 152.400 mm |
| Designation | CCGW 060204SN | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
