Description
Ceratizit Article Number: 7100770902
Ceratizit Material Number: 14703940
Ceratizit Komet Number (Unpacked): VW00 04884
Ceratizit Komet Number (Packed): VW0004884
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

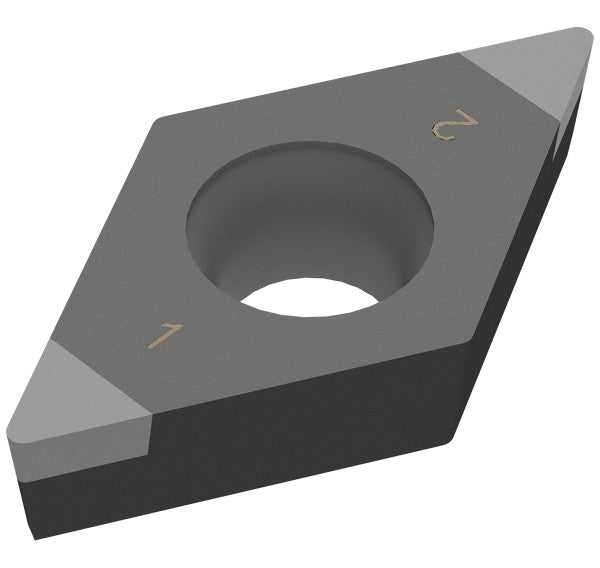

| Name | Ceratizit DCGW 11T304EN_B4-F CTBH1000C CoreLine PcBN Turning indexable Insert 7100770902 | |
| EDP # | 0782832 | |
| Weight (1 pc.) | 0.2 oz | 6.0 g |
| designation | 11T304EN | |

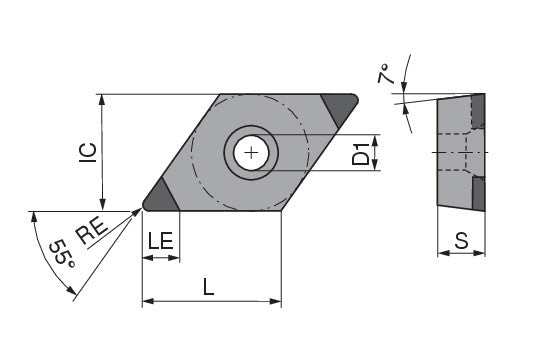

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.4567" | 11.600 mm |
| Insert thickness / S | 0.1563" | 3.970 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| 31.51EN | ||
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1417" | 3.600 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | DCGW 11T304EN | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
