Description
Ceratizit Article Number: 7103480102
Ceratizit Material Number: 14704126
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

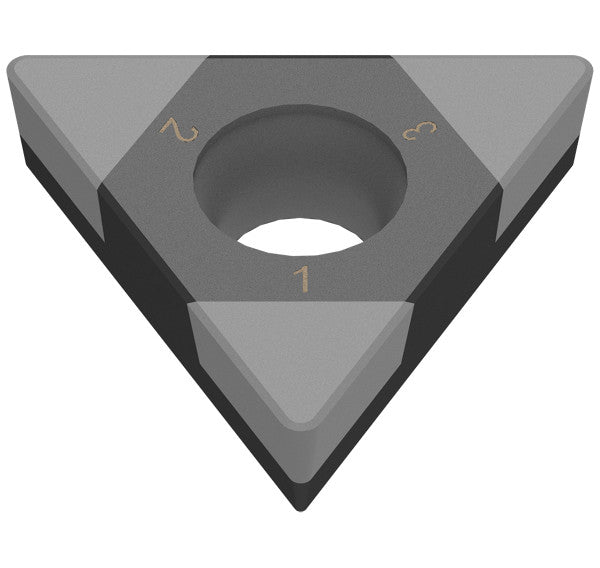

| Name | Ceratizit TCGW 110204SN-009C_C3-M CTBH2000C CoreLine PcBN Turning indexable Insert 7103480102 | |
| EDP # | 0782841 | |
| Weight (1 pc.) | 0.1 oz | 2.7 g |
| designation | 110204SN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.4331" | 11.000 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 21.51SN | ||
| support chamfer angle / GB | 15 ° | |
| TCE (NOI) | C (3) | |
| Cutting edge effective length / LE | 0.1417" | 3.600 mm |
| Face land width / BN | 0.0035" | 0.090 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | TCGW 110204SN | |
| Insert index count / NOI | 3.0000" | 76.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
