Description
Ceratizit Article Number: 7100370302
Ceratizit Material Number: 14731673
Ceratizit Komet Number (Unpacked): VW00 04882
Ceratizit Komet Number (Packed): VW0004882
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

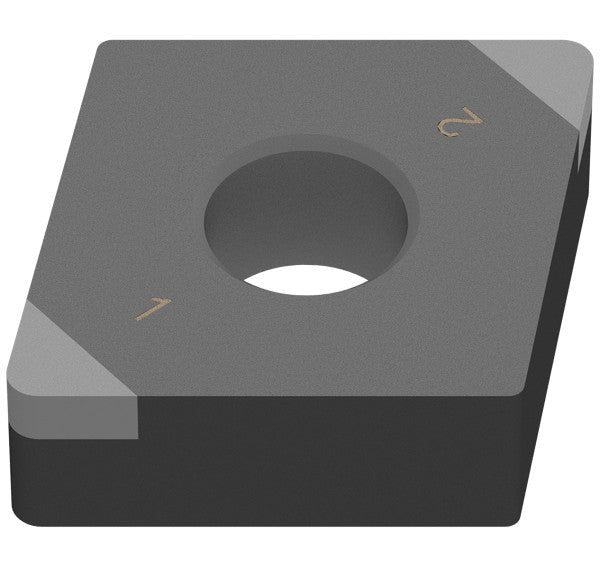

| Name | Ceratizit CNGA 120408EN_B3-F CTBH1000C CoreLine PcBN Turning indexable Insert 7100370302 | |
| EDP # | 0783014 | |
| Weight (1 pc.) | 0.4 oz | 11.0 g |

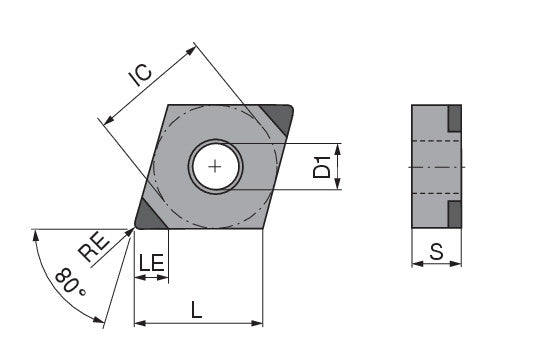

| designation | 120408EN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.5079" | 12.900 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2020" | 5.130 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 432EN | ||
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1299" | 3.300 mm |
| Size | 12.0000" | 304.800 mm |
| Designation | CNGA 120408EN | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
