Description
Ceratizit Article Number: 4065325000
Ceratizit Material Number: 14813559
Ceratizit Komet Number (Unpacked): 56R.650250C0109
Ceratizit Komet Number (Packed): 56R650250C0109
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

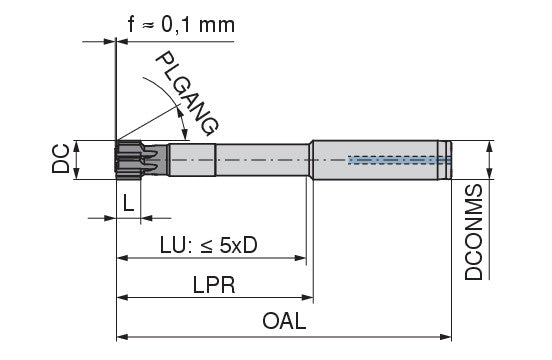

| Properties | ||
|---|---|---|
| Name | Ceratizit D025.0000M H7 ASG0106 Reamax - High-speed reamers, Long - Mono 4065325000 | |
| EDP # | 0783546 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| Cutting diameter / DC H7 | 0.9843" | 25.000 mm |
| Overall length / OAL | 7.8740" | 200.000 mm |
| Usable length / LU | 5.3150" | 135.000 mm |
| Cutting edge length / L | 0.3740" | 9.500 mm |
| Mounting spigot diameter / DCONMS h6 | 0.7874" | 20.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Protruding length / LPR | 5.5118" | 140.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DBG-P | |
Tool Form:
'H' form tools are intended for reaming; where they cannot generate a hole or cut laterally but use their lead-in and flank to improve pre-existing hole quality.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
