Description
Ceratizit Article Number: 5035701602
Ceratizit Material Number: 14822519
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

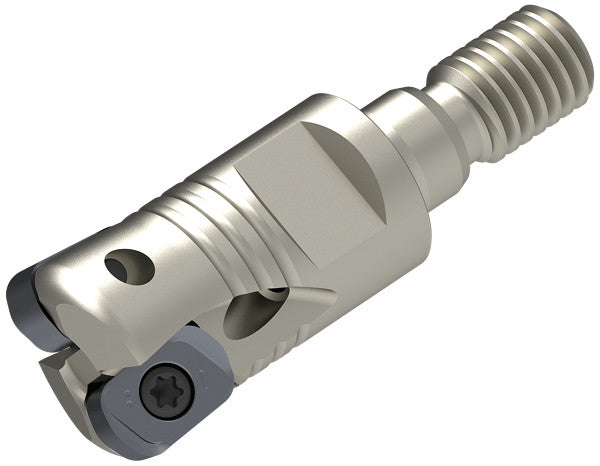

| Name | Ceratizit GHFCD.16.R.02-06 CoreLine High-feed Screw-in Cutter 5035701602 | |
| EDP # | 0783600 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) HiTemp Alloy (Orange) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 34.0 g |
| Product-Carbon-Footprint | B | |
| Productsystem | HFCD | |
| Machining process - Main Application | Axial plunging | |

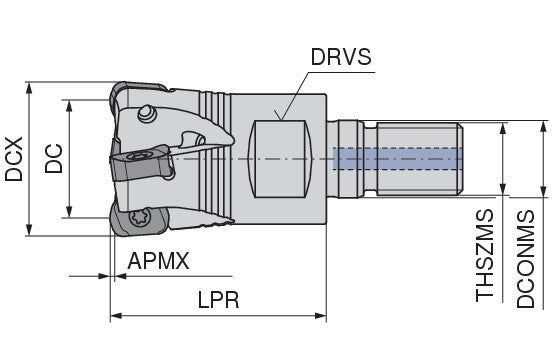

| Cutting diameter maximum / DCX | 0.6299" | 16.000 mm |
| Cutting diameter / DC | 0.3937" | 10.000 mm |
| Face mounted insert count / ZNF | 2.0000" | 50.800 mm |
| Depth of cut maximum / APMX | 0.0315" | 0.800 mm |
| Protruding length / LPR | 1.0630" | 27.000 mm |
| Neck Diameter / DN | 0.5433" | 13.800 mm |
| Connection thread nominal size / THSZMS | M8 | |
| Mounting spigot diameter / DCONMS | 0.3346" | 8.500 mm |
| Neck diameter (BD) / BD | 0.5906" | 15.000 mm |
| Drive size / DRVS | 0.3937" | 10.000 mm |
| Rotational speed maximum / RPMX | 23500 1/min. | |
| Insert | XNEU 06T3.. | |
| Overall length / OAL | 1.7717" | 45.000 mm |
| Head length / LH | 0.4016" | 10.200 mm |
| torque moment | 1.2 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
