Description
Ceratizit Article Number: 7103490502
Ceratizit Material Number: 14823461
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

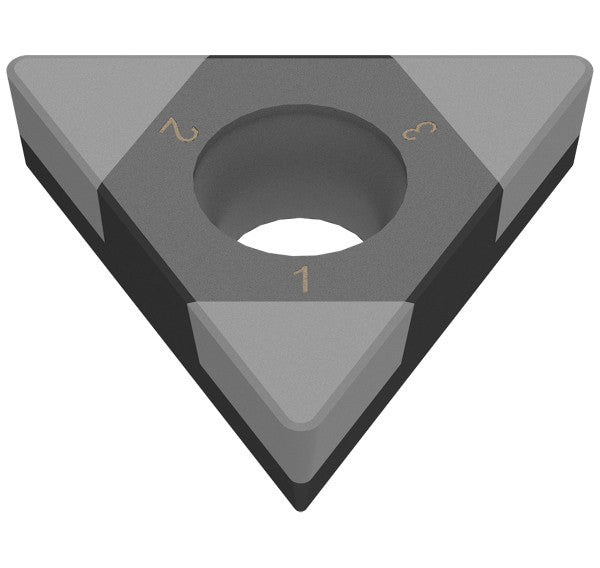

| Name | Ceratizit TCGW 110208SN-020G_C3-R CTBH3000C CoreLine PcBN Turning indexable Insert 7103490502 | |
| EDP # | 0783710 | |
| Weight (1 pc.) | 0.1 oz | 2.0 g |
| designation | 110208SN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.4331" | 11.000 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 21.52SN | ||
| support chamfer angle / GB | 35 ° | |
| TCE (NOI) | C (3) | |
| Cutting edge effective length / LE | 0.1299" | 3.300 mm |
| Face land width / BN | 0.0079" | 0.200 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | TCGW 110208SN | |
| Insert index count / NOI | 3.0000" | 76.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
