Description
Ceratizit Article Number: 7104190002
Ceratizit Material Number: 14823468
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

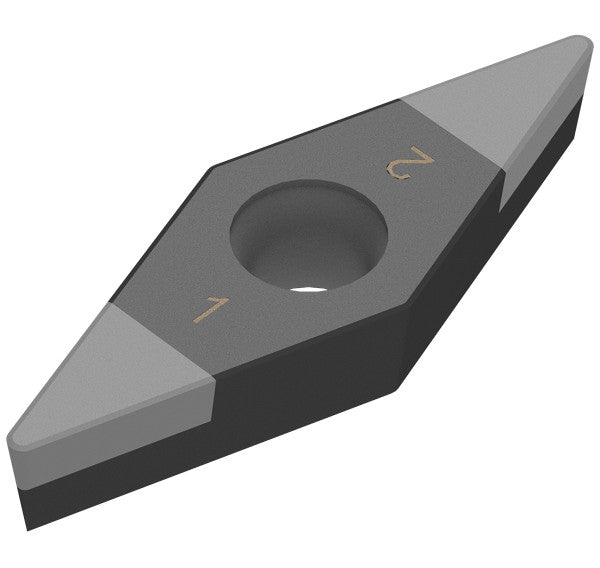

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit VCGW 110302SN-014D_B5-F CTBH3000C CoreLine PcBN Turning indexable Insert 7104190002 | |
| EDP # | 0783717 | |
| Weight (1 pc.) | 0.1 oz | 3.0 g |
| designation | 110302SN | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.4370" | 11.100 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Fixing hole diameter / D1 | 0.1142" | 2.900 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 220.5SN | ||
| support chamfer angle / GB | 20 ° | |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.2165" | 5.500 mm |
| Face land width / BN | 0.0055" | 0.140 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | VCGW 110302SN | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
