Description
Ceratizit Article Number: 7101780702
Ceratizit Material Number: 14823574
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

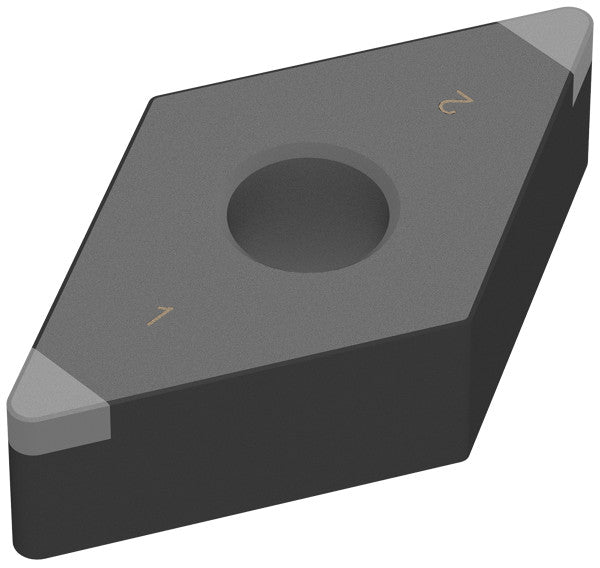

| Name | Ceratizit DNGA 150612SN-009C_B2-M CTBH2000C CoreLine PcBN Turning indexable Insert 7101780702 | |
| EDP # | 0783779 | |
| Weight (1 pc.) | 0.5 oz | 13.0 g |
| designation | 150612SN | |

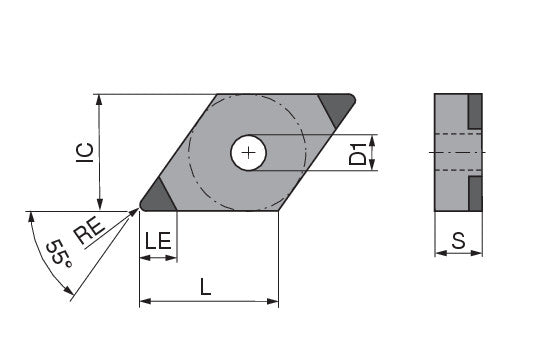

| Corner radius / RE | 0.0472" | 1.200 mm |
| Cutting edge length / L | 0.6102" | 15.500 mm |
| Insert thickness / S | 0.2500" | 6.350 mm |
| Fixing hole diameter / D1 | 0.2031" | 5.160 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 443SN | ||
| support chamfer angle / GB | 15 ° | |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1181" | 3.000 mm |
| Face land width / BN | 0.0035" | 0.090 mm |
| Size | 15.0000" | 381.000 mm |
| Designation | DNGA 150612SN | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
