Description
Ceratizit Article Number: 5125750400
Ceratizit Material Number: 14862993
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

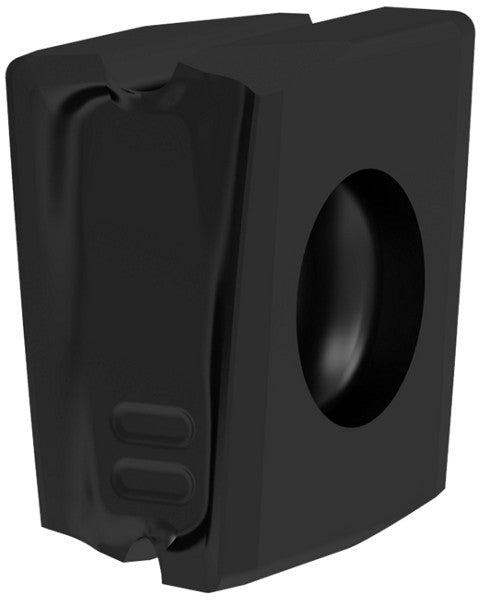

| Name | Ceratizit LNHU 090404-M50 CTCK215 CoreLine Carbide Milling indexable Insert 5125750400 | |
| EDP # | 0784112 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| Product-Carbon-Footprint | D | |
| designation | 90404.0000" | 2296261.600 mm |

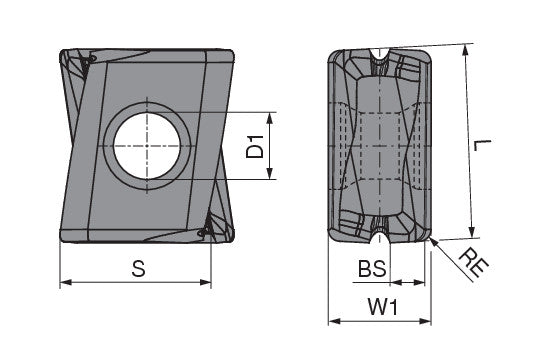

| Corner radius / RE | 0.0157" | 0.400 mm |
| Inscribed circle diameter / IC | 0.1890" | 4.800 mm |
| Fixing hole diameter / D1 | 0.1358" | 3.450 mm |
| Cutting edge length / L | 0.3433" | 8.720 mm |
| Trailing edge length / BS | 0.0469" | 1.190 mm |
| Insert thickness / S | 0.3150" | 8.000 mm |
| Clearance angle major / AN | 4 ° | |
| Insert width / W1 | 0.1890" | 4.800 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
