Description
Ceratizit Article Number: 7408260200
Ceratizit Material Number: 14873424
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

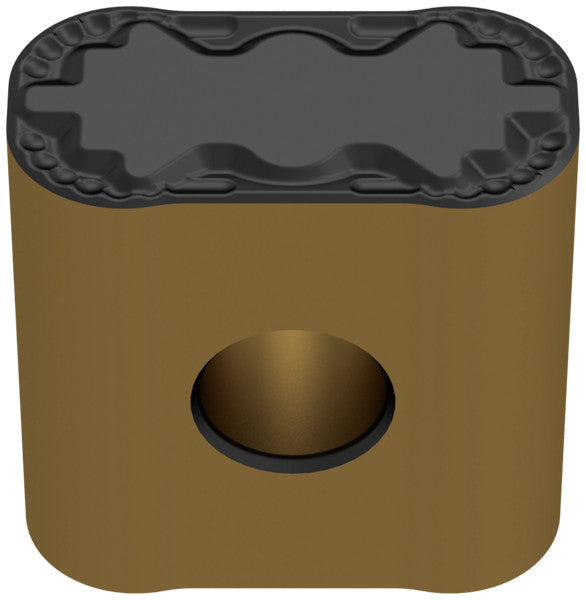

| Name | Ceratizit LNUX 191940SN-R74 CTCP125-P MaxiTurn Carbide Turning indexable Insert 7408260200 | |
| EDP # | 0784162 | |
| Weight (1 pc.) | 1.0 oz | 41.4 g |
| Product-Carbon-Footprint | D | |
| designation | 191940SN | |
| Corner radius / RE | 0.1575" | 4.000 mm |
| Cutting edge length / L | 0.7500" | 19.050 mm |
| Insert thickness / S | 0.3937" | 10.000 mm |
| Fixing hole diameter / D1 | 0.2500" | 6.350 mm |
| Inscribed circle diameter / IC | 0.7500" | 19.050 mm |
| 191940SN | ||
| Size | 19.0000" | 482.600 mm |
| Designation | LNUX 191940SN | |
| Chip breaker (Ceratizit) / CBMD | -R74 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
