Description
Ceratizit Article Number: 7040266001
Ceratizit Material Number: 14876051
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

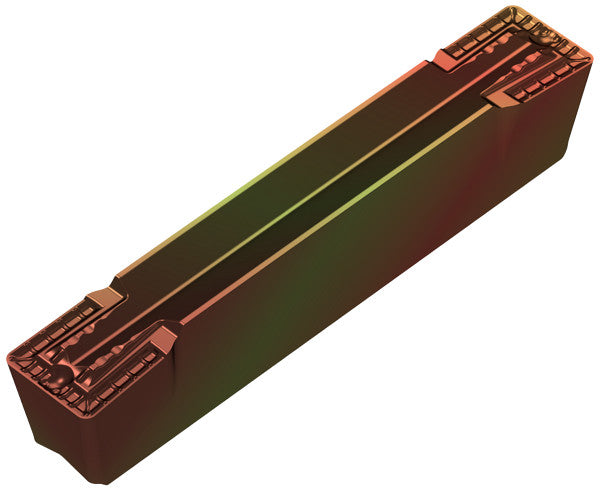

| Name | Ceratizit GX24-4E6.00N0.80-M45 CTCP325 CoreLine Carbide Grooving Insert 7040266001 | |
| EDP # | 0784215 | |
| Weight (1 pc.) | 0.3 oz | 9.0 g |
| Product-Carbon-Footprint | D | |
| Machining process - Main Application | Grooving and Turning | |
| Cutting width / CW +/-0,05 | 0.2362" | 6.000 mm |
| Insert hand / IH | N | |
| Insert width / W1 | 0.1890" | 4.800 mm |
| Insert length / INSL | 0.9449" | 24.000 mm |
| Corner radius / RE +/-0,05 | 0.0315" | 0.800 mm |
| Profile depth insert / PDPT | 0.1811" | 4.600 mm |
| Clearance angle major / AN | 10 ° | |
| Chip breaker (Ceratizit) / CBMD | -M45 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
