Description
Ceratizit Article Number: 1087859500
Ceratizit Material Number: 14883397
Ceratizit Komet Number (Unpacked): D60 19501
Ceratizit Komet Number (Packed): D6019501
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

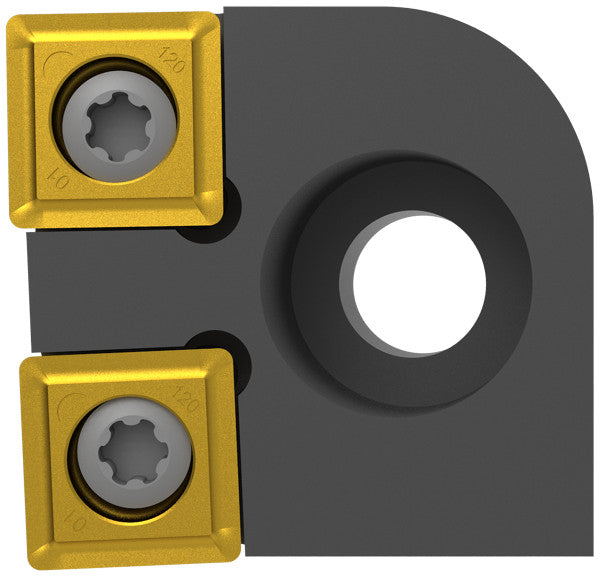

| Name | Ceratizit AK.5.95.13 Pentron - External Cartridge - CS 1087859500 | |
| EDP # | 0784248 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) HiTemp Alloy (Orange) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 4.0 oz | 120 g |
| Productsystem | CS | |
| Machining process - Main Application | Spot drilling a convex surface | |
| Cutting edge Ø - range / DC | 3.7402" | 95.000 mm |
| nominal size / SZID | 5.0000" | 127.000 mm |

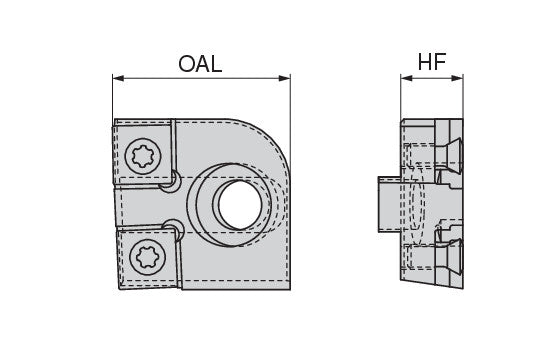

| Overall length / OAL | 1.4094" | 35.800 mm |
| Insert | SOGX 130508 | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
