Description
Ceratizit Article Number: 5908390033
Ceratizit Material Number: 14899715
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

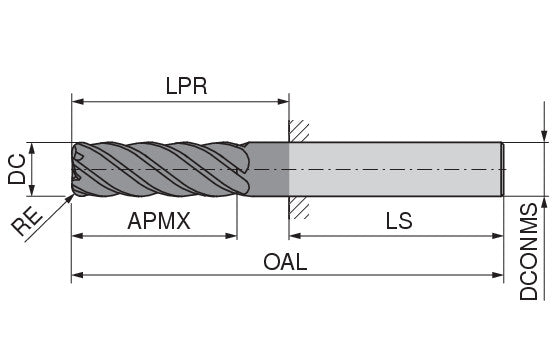

| Properties | ||
|---|---|---|
| Name | Ceratizit 3DX166-03750.12500.R06.R00150.HA.C95 MonsterMill End Milling Cutter With Corner Radius ISO-S 5908390033 | |
| EDP # | 0784347 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Machining process - Main Application | Helical plunging | |
| Cutting diameter / DC +.000/-.002 | 0.3750" | 9.520 mm |
| Corner radius / RE | 0.0150" | 0.380 mm |
| Depth of cut maximum / APMX | 1.2500" | 31.750 mm |
| Protruding length / LPR | 1.5827" | 40.200 mm |
| Overall length / OAL | 3.0000" | 76.200 mm |
| Mounting spigot diameter / DCONMS -.0001 / -.0004 | 0.3750" | 9.520 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Coating name / Grade (Ceratizit) / COATN | DPAU72S | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
