Description
Ceratizit Article Number: 5908390640
Ceratizit Material Number: 14899774
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

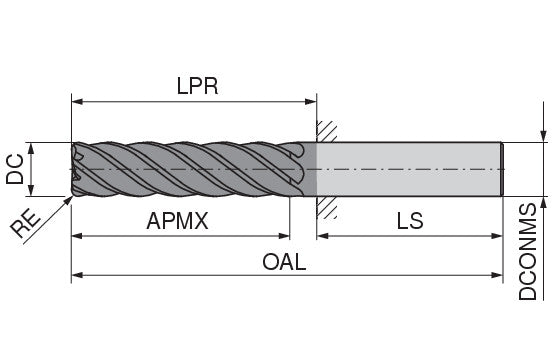

| Properties | ||
|---|---|---|
| Name | Ceratizit 3DX166-05000.20000.R06.R00900.HA.C95 MonsterMill End Milling Cutter With Corner Radius ISO-S 5908390640 | |
| EDP # | 0784409 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Machining process - Main Application | Helical plunging | |
| Cutting diameter / DC +.000/-.002 | 0.5000" | 12.700 mm |
| Corner radius / RE | 0.0900" | 2.290 mm |
| Depth of cut maximum / APMX | 2.0000" | 50.800 mm |
| Protruding length / LPR | 2.2283" | 56.600 mm |
| Overall length / OAL | 4.0000" | 101.600 mm |
| Mounting spigot diameter / DCONMS -.0001 / -.0004 | 0.5000" | 12.700 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Coating name / Grade (Ceratizit) / COATN | DPAU72S | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
