Ceratizit 3DX166-10000.32500.R06.R01600.HA.C95 MonsterMill End Milling Cutter With Corner Radius ISO-S 5908390733 (0784445)
Ceratizit 3DX166-10000.32500.R06.R01600.HA.C95 MonsterMill End Milling Cutter With Corner Radius ISO-S 5908390733 (0784445)
Couldn't load pickup availability
Ceratizit Article Number: 5908390733
Ceratizit Material Number: 14899810
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3DX166-10000.32500.R06.R01600.HA.C95 MonsterMill End Milling Cutter With Corner Radius ISO-S 5908390733 | |
| EDP # | 0784445 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Machining process - Main Application | Helical plunging | |

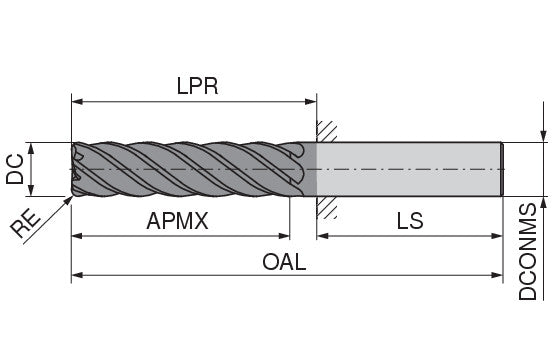

| Cutting diameter / DC +.000/-.002 | 1.0000" | 25.400 mm |
| Corner radius / RE | 0.1600" | 4.060 mm |
| Depth of cut maximum / APMX | 3.2500" | 82.550 mm |
| Protruding length / LPR | 3.7953" | 96.400 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Mounting spigot diameter / DCONMS -.0001 / -.0004 | 1.0000" | 25.400 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Coating name / Grade (Ceratizit) / COATN | DPAU72S | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
