Ceratizit KUB Pentron 1,50"x3,75"/W8042/38,9/117/R - Indexable Insert Drills 1587338902 (0784713) [SKU:1587338902]
Ceratizit KUB Pentron 1,50"x3,75"/W8042/38,9/117/R - Indexable Insert Drills 1587338902 (0784713) [SKU:1587338902]
Couldn't load pickup availability
Ceratizit Article Number: 1587338902
Ceratizit Material Number: 14921149
Ceratizit Komet Number (Unpacked): U43 83890
Ceratizit Komet Number (Packed): U4383890
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Pentron 1,50"x3,75"/W8042/38,9/117/R - Indexable Insert Drills 1587338902 | |
| EDP # | 0784713 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 46.0 oz | 1290 g |
| Machining process - Main Application | Chain drilling | |

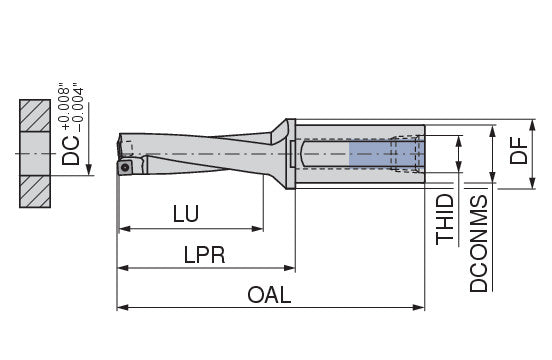

| Cutting diameter / DC | 1.5310" | 38.890 mm |
| Mounting spigot diameter / DCONMS | 1.5000" | 38.100 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 9.4587" | 240.250 mm |
| Protruding length / LPR | 5.7087" | 145.000 mm |
| Usable length / LU | 4.6063" | 117.000 mm |
| Insert | SOGX 120408 | |
| Thread designation inside / THID | 3/4" NPT | |
| torque moment | 6.25 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
