Description
Ceratizit Article Number: 5908462520
Ceratizit Material Number: 14927507
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3DX166-06250.12500.R06.R03130.HA.C95 MonsterMill Ball Nosed Cutter ISO-S 5908462520 | |
| EDP # | 0784809 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Machining process - Main Application | Form milling | |

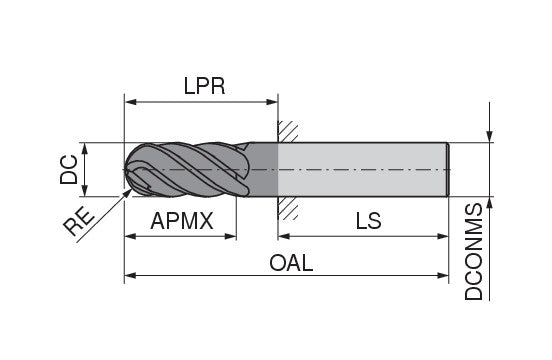

| Cutting diameter / DC +.000/-.002 | 0.6250" | 15.880 mm |
| Depth of cut maximum / APMX | 1.2500" | 31.750 mm |
| Protruding length / LPR | 1.6102" | 40.900 mm |
| Overall length / OAL | 3.5000" | 88.900 mm |
| Mounting spigot diameter / DCONMS -.0001 / -.0004 | 0.6250" | 15.880 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Corner radius / RE | 0.3125" | 7.940 mm |
| Coating name / Grade (Ceratizit) / COATN | DPXU72S | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
