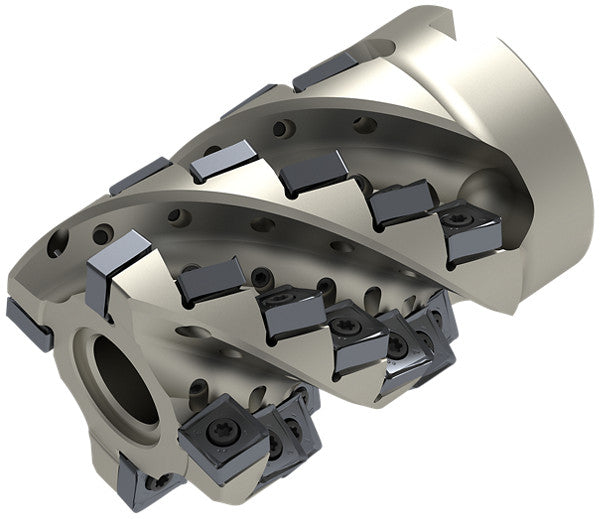

Ceratizit ARADX.63.R.04K7-12 MaxiMill Shell End Face Mill 5051906347 (0784821) [SKU:5051906347]
Ceratizit ARADX.63.R.04K7-12 MaxiMill Shell End Face Mill 5051906347 (0784821) [SKU:5051906347]
Couldn't load pickup availability
Ceratizit Article Number: 5051906347
Ceratizit Material Number: 14927802
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ARADX.63.R.04K7-12 MaxiMill Shell End Face Mill 5051906347 | |
| EDP # | 0784821 | |
| Weight (1 pc.) | 41.0 oz | 1150 g |

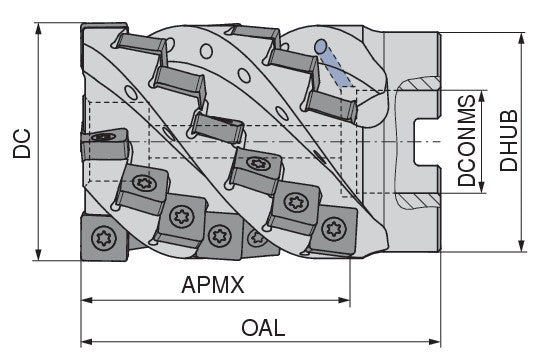

| Depth of cut maximum / APMX | 2.8110" | 71.400 mm |
| Face mounted insert count / ZNF | 4 | |
| Cutting diameter / DC | 2.4803" | 63.000 mm |
| Peripheral effective cutting edge count / ZEFP | 28 | |
| Peripheral mounted insert count / ZNP | 7.0000" | 177.800 mm |
| Overall length / OAL | 3.7402" | 95.000 mm |
| Hub diameter / DHUB | 2.2835" | 58.000 mm |
| Mounting spigot diameter / DCONMS H6 | 1.0630" | 27.000 mm |
| Rotational speed maximum / RPMX | 6400 1/min. | |
| torque moment | 3.2 Nm | |
| Insert | SXHU 1204.. | |
| Tool cutting edge angle / KAPR | 90 ° | |
| Product-Carbon-Footprint | B | |
| Product System | RadX | |
| Machining process - Main Application | Face milling | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
