Description
Ceratizit Article Number: 4062700036
Ceratizit Material Number: 14943419
Ceratizit Komet Number (Unpacked): 56J.930120C0283
Ceratizit Komet Number (Packed): 56J930120C0283
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

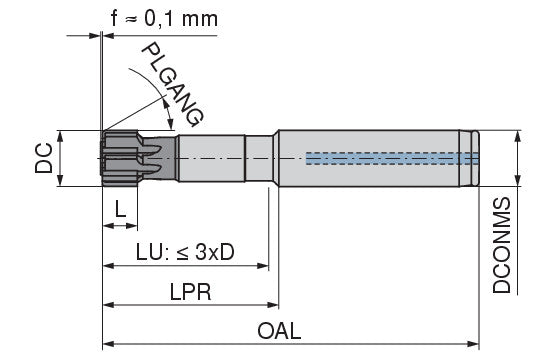

| Properties | ||
|---|---|---|
| Name | Ceratizit MM.12,000.+0,013/+0,027.ASG3000.95 DST Reamax - High-speed reamers, Short - Mono 4062700036 | |
| EDP # | 0785052 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| Cutting diameter / DC +0,013/+0,027 mm | 0.4724" | 12.000 mm |
| Overall length / OAL | 3.7402" | 95.000 mm |
| Usable length / LU | 1.7717" | 45.000 mm |
| Cutting edge length / L | 0.3740" | 9.500 mm |
| Mounting spigot diameter / DCONMS h6 | 0.4724" | 12.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Protruding length / LPR | 1.9685" | 50.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DST | |
Tool Form:
'H' form tools are intended for reaming; where they cannot generate a hole or cut laterally but use their lead-in and flank to improve pre-existing hole quality.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
