Description
Ceratizit Article Number: 7054762500
Ceratizit Material Number: 14955085
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

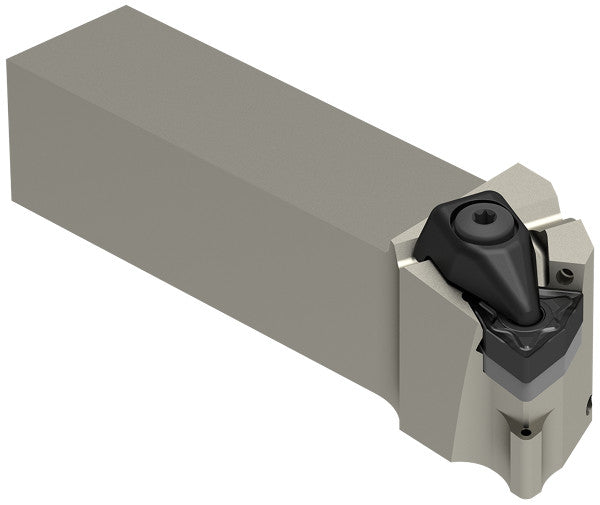

| Name | Ceratizit DWLNL 2525 X06 DC CoreLine - 95° - Tool Holder With Top Clamping 7054762500 | |
| EDP # | 0785211 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 0.02 oz | 0.5 g |
| Product-Carbon-Footprint | B | |

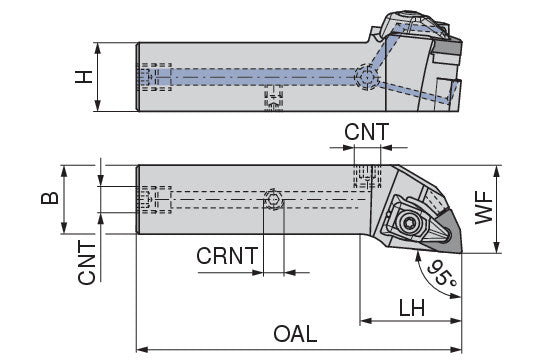

| Shank height / H | 0.9843" | 25.000 mm |
| Shank width / B | 0.9843" | 25.000 mm |
| Overall length / OAL | 4.2913" | 109.000 mm |
| Head length / LH | 0.9843" | 25.000 mm |
| Functional width / WF | 1.2598" | 32.000 mm |
| Insert | WN.. 0604 | |
| Coolant entry style code, radial thread size / CRNT | M6 | |
| Coolant entry, thread size / CNT | G1/8" | |
| torque moment | 2 Nm | |
| Clamping system | Top clamping for negative hole inserts | |
| holder form | DWLN 95° | |
| Internal Coolant | DirectCooling | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
