Description
Ceratizit Article Number: 5105112106
Ceratizit Material Number: 14959783
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

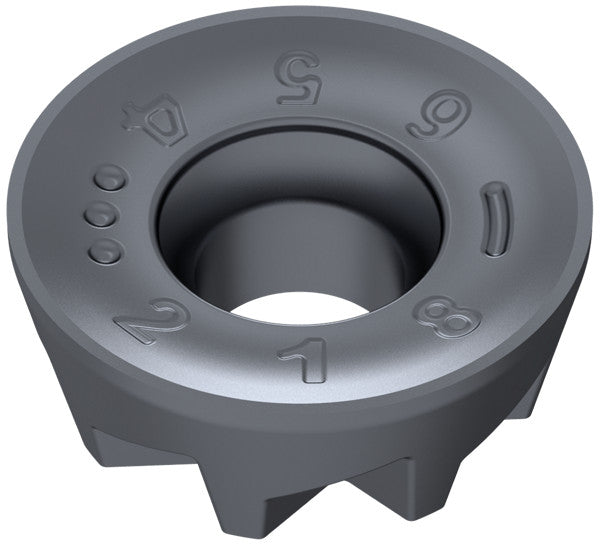

| Name | Ceratizit RPHX 10T3M8SN-F50 CTPX245 MaxiMill Carbide Milling indexable Insert 5105112106 | |
| EDP # | 0785345 | |
| Weight (1 pc.) | 0.2 oz | 4.6 g |
| designation | 10T3M8SN | |

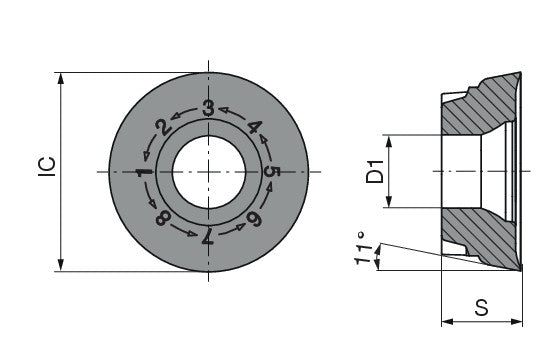

| Corner radius / RE | 0.1969" | 5.000 mm |
| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| Fixing hole diameter / D1 | 0.1339" | 3.400 mm |
| Insert thickness / S | 0.1563" | 3.970 mm |
| Clearance angle major / AN | 11 ° | |
| Coating name / Grade (Ceratizit) / COATN | CTPX245 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
