Description
Ceratizit Article Number: 5390103201
Ceratizit Material Number: 14969969
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

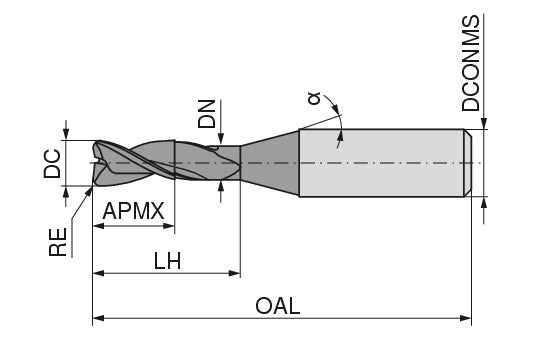

| Properties | ||
|---|---|---|
| Name | Ceratizit 3A0048-00300.0003.R02.R00030.HA.B580 AluLine Micro Torus Cutters W 5390103201 | |
| EDP # | 0785454 | |
| Weight (1 pc.) | 0.4 oz | 12.4 g |
| Product-Carbon-Footprint | E | |
| Machining process - Main Application | Form milling | |
| Cutting diameter / DC -0,01 mm | 0.0118" | 0.300 mm |
| Corner radius / RE ±0.01 | 0.0012" | 0.030 mm |
| Depth of cut maximum / APMX | 0.0118" | 0.300 mm |
| Neck Diameter / DN | 0.0110" | 0.280 mm |
| Head length / LH | 0.0591" | 1.500 mm |
| Protruding length / LPR | 0.6693" | 17.000 mm |
| Overall length / OAL | 1.7717" | 45.000 mm |
| Mounting spigot diameter / DCONMS h5 | 0.1575" | 4.000 mm |
| Alpha | 15.0000" | 381.000 mm |
| Peripheral effective cutting edge count / ZEFP | 2.0000" | 50.800 mm |
| Coating name / Grade (Ceratizit) / COATN | DLC | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
