Description
Ceratizit Article Number: 7036304201
Ceratizit Material Number: 14987788
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

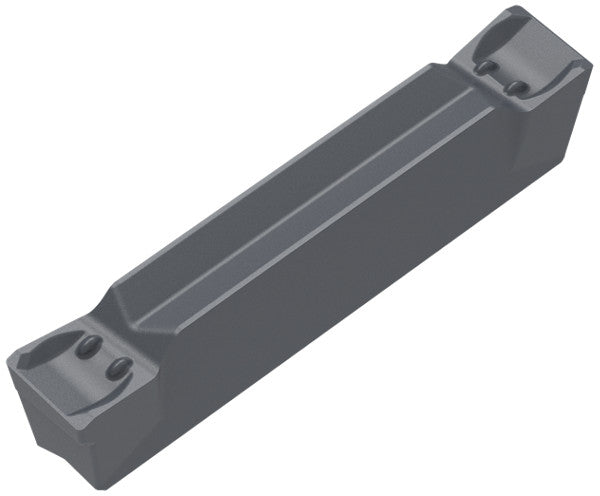

| Name | Ceratizit GX24-3E4.00L6-M1 CTP1340 CoreLine Carbide Grooving Insert 7036304201 | |
| EDP # | 0785807 | |
| Weight (1 pc.) | 0.3 oz | 7.3 g |

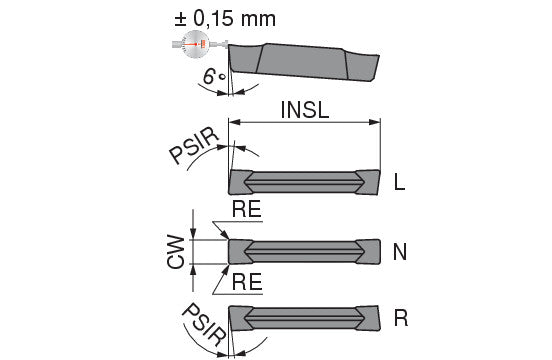

| Cutting width / CW +/-0,05 | 0.1575" | 4.000 mm |
| Insert hand / IH | L | |
| Insert width / W1 | 0.1220" | 3.100 mm |
| Insert length / INSL | 0.9606" | 24.400 mm |
| Corner radius / RE +/-0,05 | 0.0079" | 0.200 mm |
| Tool lead angle / PSIR | 6 ° | |
| Profile depth insert / PDPT | 0.1535" | 3.900 mm |
| Clearance angle major / AN | 10 ° | |
| Chip breaker (Ceratizit) / CBMD | -M1 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Parting | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
