Description
Ceratizit Article Number: 5037206312
Ceratizit Material Number: 14988677
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

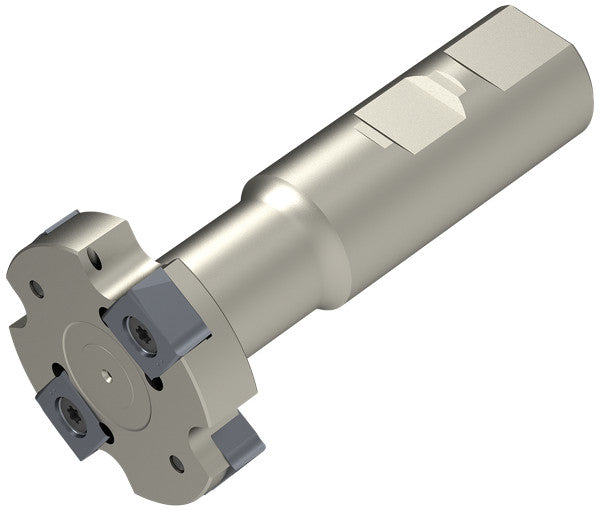

| Name | Ceratizit CSLOT.63.R.06-SN13-12-DC-B25-41 CoreLine Cylindrical Shank Saw Slot-SNHX 5037206312 | |
| EDP # | 0785831 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 18.0 oz | 501 g |
| Product-Carbon-Footprint | A | |
| Productsystem | Slot-SNHX | |
| Machining process - Main Application | Slot milling | |

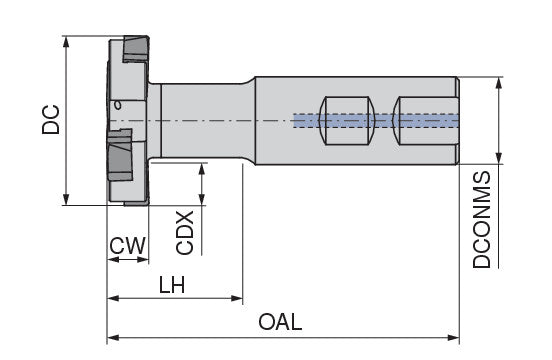

| Cutting diameter / DC | 2.4803" | 63.000 mm |
| Cutting width / CW | 0.4724" | 12.000 mm |
| Face mounted insert count / ZNF | 6.0000" | 152.400 mm |
| Cutting depth maximum / CDX | 0.7087" | 18.000 mm |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Insert | SNHX 1307.. | |
| Neck Diameter / DN | 0.8268" | 21.000 mm |
| Designation | CSLOT.63.R.06-SN13-12-DC-B25-41 | |
| Protruding length / LPR | 1.6535" | 42.000 mm |
| Head length / LH | 1.4567" | 37.000 mm |
| torque moment | 3 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
