Description
Ceratizit Article Number: 5835644012
Ceratizit Material Number: 15023394
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

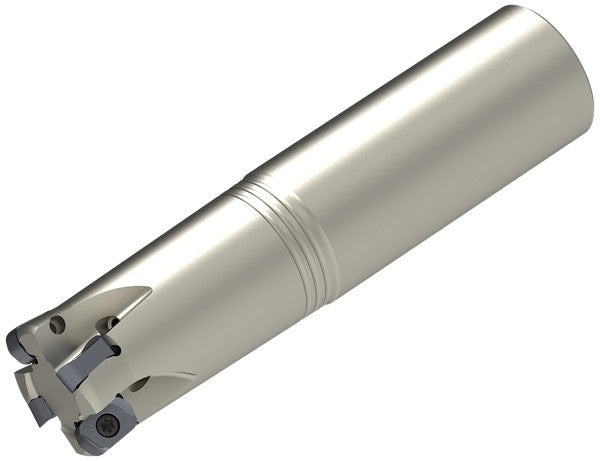

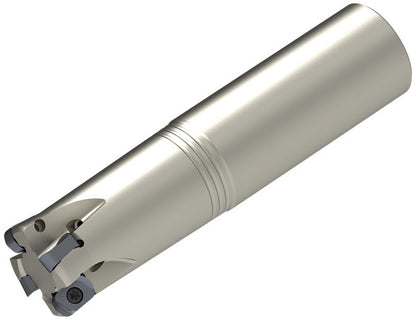

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CHFCD.0625.R.02-06-A-150-EF-800 CoreLine High-feed End Mill 5835644012 | |
| EDP # | 0786040 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 10.0 oz | 289 g |
| Productsystem | HFCD | |
| Machining process - Main Application | Angled ramping | |

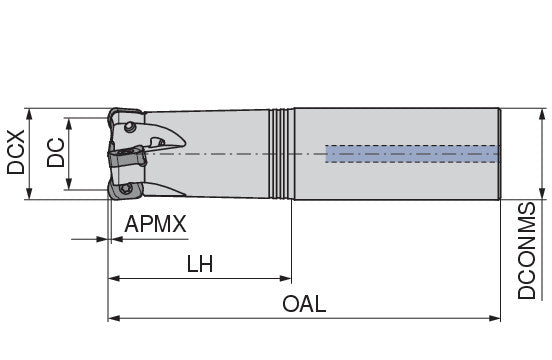

| Cutting diameter maximum / DCX | 0.6250" | 15.880 mm |
| Cutting diameter / DC | 0.4014" | 10.200 mm |
| Face mounted insert count / ZNF | 2.0000" | 50.800 mm |
| Depth of cut maximum / APMX | 0.0315" | 0.800 mm |
| Overall length / OAL | 8.0000" | 203.200 mm |
| Head length / LH | 1.5000" | 38.100 mm |
| Neck diameter (BD) / BD | 0.5858" | 14.880 mm |
| Mounting spigot diameter / DCONMS h6 | 0.6250" | 15.880 mm |
| Rotational speed maximum / RPMX | 12400 1/min. | |
| Insert | XNEU 06T3.. | |
| torque moment | 1.2 Nm | |
| Minimum Extension (DIN 6535 HA) | 6.0315" - 6.1102" | 153.200 - 155.200 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
