Description
Ceratizit Article Number: 5835605203
Ceratizit Material Number: 15023396
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

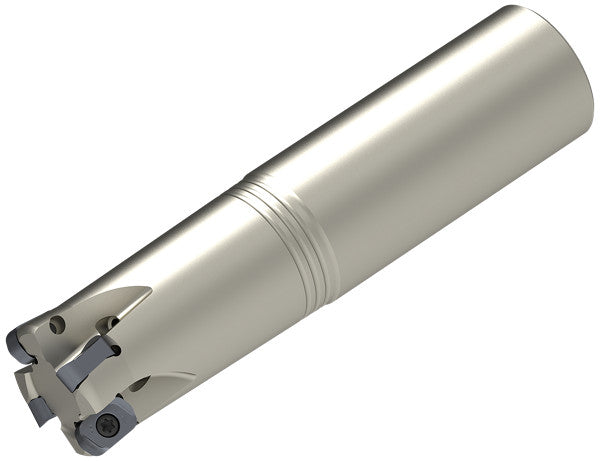

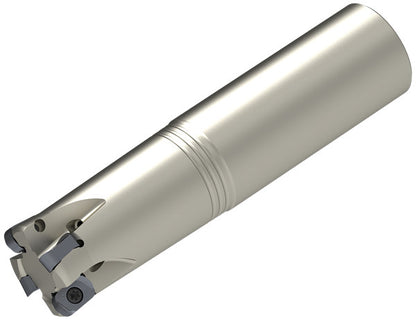

| Name | Ceratizit CHFCD.0750.R.03-06-A-200-EF CoreLine High-feed End Mill 5835605203 | |
| EDP # | 0786041 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 7.0 oz | 195 g |
| Productsystem | HFCD | |
| Machining process - Main Application | Angled ramping | |

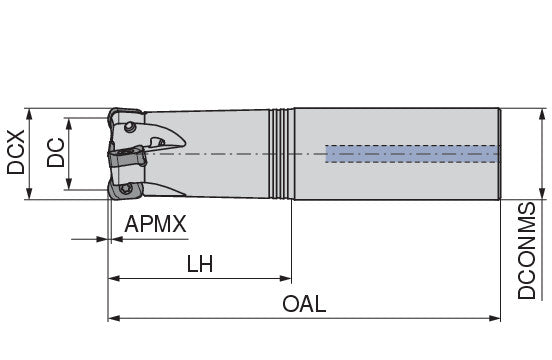

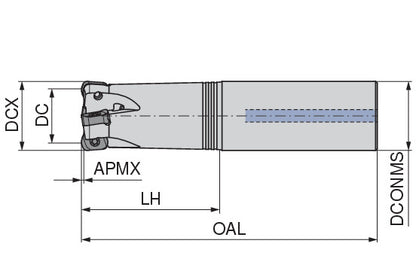

| Cutting diameter maximum / DCX | 0.7500" | 19.050 mm |
| Cutting diameter / DC | 0.5195" | 13.200 mm |
| Face mounted insert count / ZNF | 3.0000" | 76.200 mm |
| Depth of cut maximum / APMX | 0.0315" | 0.800 mm |
| Overall length / OAL | 4.0984" | 104.100 mm |
| Head length / LH | 2.0000" | 50.800 mm |
| Neck diameter (BD) / BD | 0.7106" | 18.050 mm |
| Mounting spigot diameter / DCONMS h6 | 0.7500" | 19.050 mm |
| Rotational speed maximum / RPMX | 16600 1/min. | |
| Insert | XNEU 06T3.. | |
| torque moment | 1.2 Nm | |
| Minimum Extension (DIN 6535 HA) | 2.0512" - 2.1299" | 52.100 - 54.100 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
