Description
Ceratizit Article Number: 8275212200
Ceratizit Material Number: 15034037
Ceratizit Komet Number (Unpacked): 82752 12200
Ceratizit Komet Number (Packed): 8275212200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

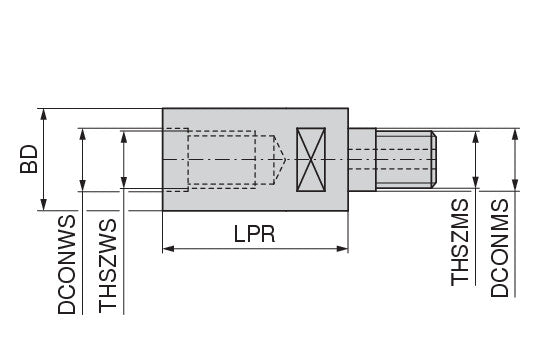

| Properties | ||
|---|---|---|

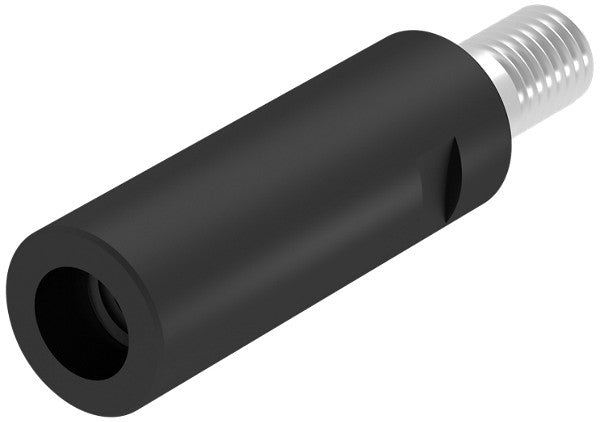

| Name | Ceratizit M12.V.60.IK CoreLine - Extensions For Screw-in Cutters 8275212200 | |
| EDP # | 0786229 | |
| Weight (1 pc.) | 6.0 oz | 165 g |
| Product-Carbon-Footprint | B | |
| Connection thread nominal size workpiece side / THSZWS | M12 | |
| Clamping diameter (DCONWS) / DCONWS | 0.4921" | 12.500 mm |
| Neck diameter (BD) / BD | 0.8268" | 21.000 mm |
| Protruding length / LPR | 2.3622" | 60.000 mm |
| Mounting spigot diameter / DCONMS | 0.4921" | 12.500 mm |
| Overall length / OAL | 3.2283" | 82.000 mm |
| Drive size / DRVS | 0.6693" | 17.000 mm |
| Connection thread nominal size / THSZMS | M12 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
