Ceratizit D036.9500M H7 ASG0106 Reamax - Replaceable Reaming Heads - TS 4052136950 (0786659)
Ceratizit D036.9500M H7 ASG0106 Reamax - Replaceable Reaming Heads - TS 4052136950 (0786659)
Couldn't load pickup availability
Ceratizit Article Number: 4052136950
Ceratizit Material Number: 15055502
Ceratizit Komet Number (Unpacked): 75J.650370C0122
Ceratizit Komet Number (Packed): 75J650370C0122
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

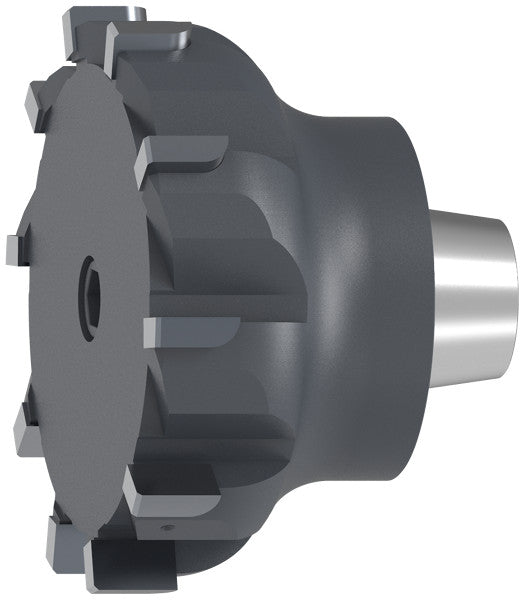

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

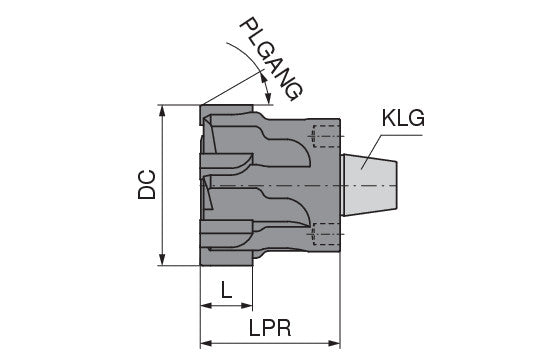

| Properties | ||
|---|---|---|
| Name | Ceratizit D036.9500M H7 ASG0106 Reamax - Replaceable Reaming Heads - TS 4052136950 | |
| EDP # | 0786659 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| Cutting diameter / DC H7 | 1.4547" | 36.950 mm |
| Cutting edge length / L | 0.2362" | 6.000 mm |
| Peripheral effective cutting edge count / ZEFP | 8.0000" | 203.200 mm |
| Coupling Size | 5.0000" | 127.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DBG-P | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
