Description
Ceratizit Article Number: 5865660008
Ceratizit Material Number: 15070026
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

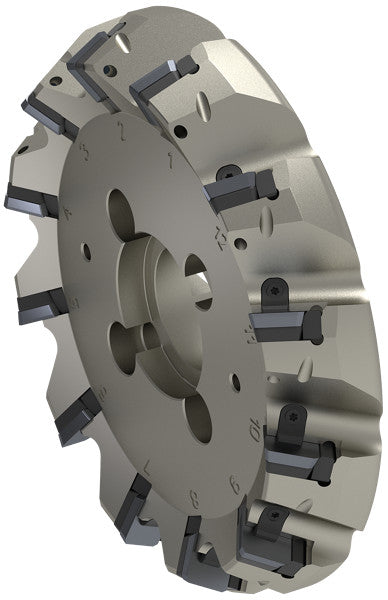

| Name | Ceratizit AHDC.600.R.08-60-B200-250-EF-SD25 MaxiMill Face Mills HeavyDC 5865660008 | |
| EDP # | 0788846 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 319.0 oz | 9035 g |

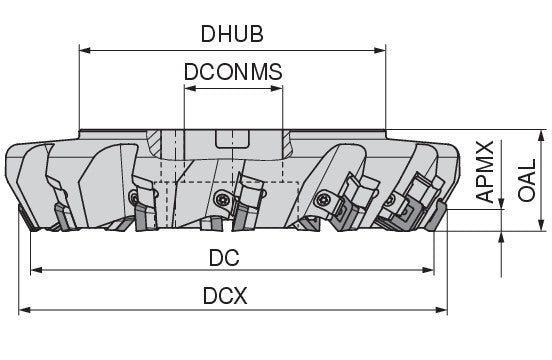

| Cutting diameter maximum / DCX | 6.7992" | 172.700 mm |
| Depth of cut maximum / APMX | 0.6890" | 17.500 mm |
| Face mounted insert count / ZNF | 8.0000" | 203.200 mm |
| Cutting diameter / DC | 6.0000" | 152.400 mm |
| Overall length / OAL | 2.5000" | 63.500 mm |
| Hub diameter / DHUB | 4.0945" | 104.000 mm |
| Mounting spigot diameter / DCONMS H6 | 2.0000" | 50.800 mm |
| Rotational speed maximum / RPMX | 700 1/min. | |
| torque moment | 5 Nm | |
| Insert | SDHN 2506 | |
| Tool cutting edge angle / KAPR | 60 ° | |
| Product-Carbon-Footprint | B | |
| Productsystem | HeavyDC | |
| Machining process - Main Application | Face milling | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
