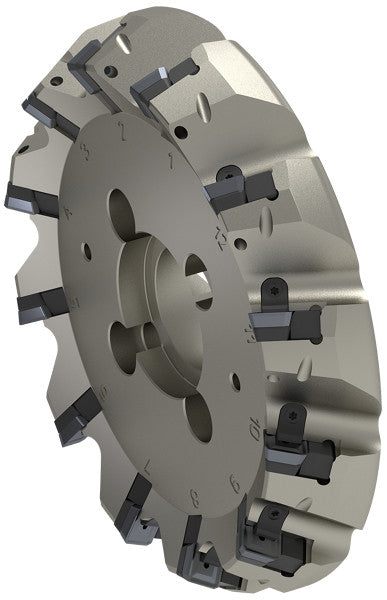

Ceratizit AHDC.1200.R.16-60-C250-250-EF-SD20 MaxiMill Face Mills HeavyDC 5865512016 (0788851) [SKU:5865512016]
Ceratizit AHDC.1200.R.16-60-C250-250-EF-SD20 MaxiMill Face Mills HeavyDC 5865512016 (0788851) [SKU:5865512016]
Couldn't load pickup availability
Ceratizit Article Number: 5865512016
Ceratizit Material Number: 15070071
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit AHDC.1200.R.16-60-C250-250-EF-SD20 MaxiMill Face Mills HeavyDC 5865512016 | |
| EDP # | 0788851 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 921.0 oz | 26100 g |
| Product-Carbon-Footprint | B | |
| Product System | HeavyDC | |
| Machining process - Main Application | Face milling | |

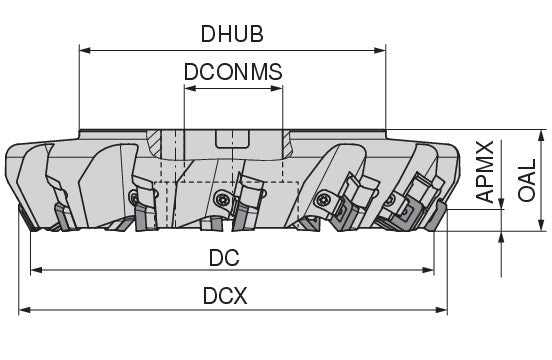

| Cutting diameter maximum / DCX | 12.6024" | 320.100 mm |
| Depth of cut maximum / APMX | 0.5118" | 13.000 mm |
| Face mounted insert count / ZNF | 16 | |
| Cutting diameter / DC | 12.0000" | 304.800 mm |
| Overall length / OAL | 2.5000" | 63.500 mm |
| Hub diameter / DHUB | 8.8976" | 226.000 mm |
| Mounting spigot diameter / DCONMS H6 | 2.5000" | 63.500 mm |
| Rotational speed maximum / RPMX | 355 1/min. | |
| torque moment | 5 Nm | |
| Insert | SDKR / SDKN 2006 | |
| Tool cutting edge angle / KAPR | 60 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
