Description
Ceratizit Article Number: 7410954100
Ceratizit Material Number: 15075748
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

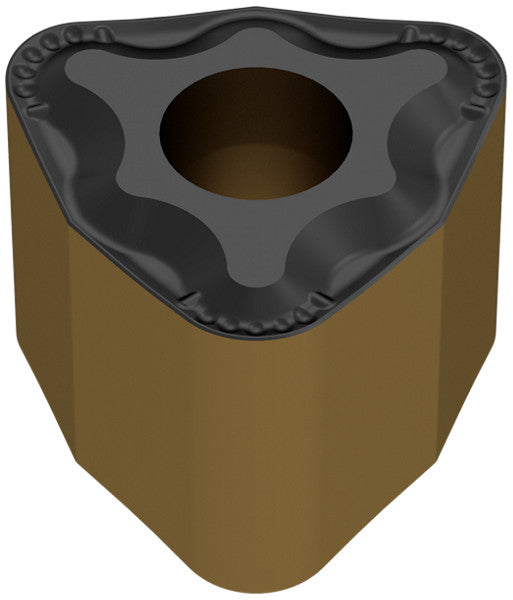

| Name | Ceratizit WNMG 121740SN-M23 CTC15RW1 MaxiTurn Carbide Turning indexable Insert 7410954100 | |
| EDP # | 0789114 | |
| Weight (1 pc.) | 3.0 oz | 82.7 g |
| Product-Carbon-Footprint | C | |
| designation | 121740SN | |
| Corner radius / RE | 0.1575" | 4.000 mm |
| Cutting edge length / L | 0.4724" | 12.000 mm |
| Insert thickness / S | 0.6693" | 17.000 mm |
| Fixing hole diameter / D1 | 0.3126" | 7.940 mm |
| Inscribed circle diameter / IC | 0.7500" | 19.050 mm |
| Insert index count / NOI | 6.0000" | 152.400 mm |
| 121740SN | ||
| Size | 12.0000" | 304.800 mm |
| Designation | WNMG 121740SN | |
| Chip breaker (Ceratizit) / CBMD | -M23 | |
| Coating name / Grade (Ceratizit) / COATN | CTC15RW1 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
