Description
Ceratizit Article Number: 22154080
Ceratizit Material Number: 2215408000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

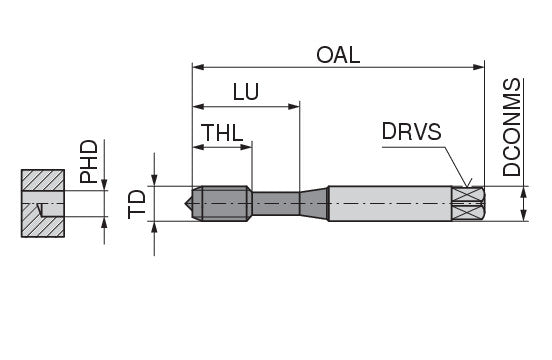

| Properties | ||
|---|---|---|
| Name | Ceratizit DuoForm EC SN.M8.ISO2X.DIN2174-C TIN GS CoreLine Through Hole-blind Hole Machine Thread formers, Right-hand 22154080 | |
| EDP # | 0789421 | |
| Weight (1 pc.) | 1.0 oz | 34.8 g |
| Thread diameter range / TD | m8 | |
| Overall length / OAL | 3.5433" | 90.000 mm |
| Mounting spigot diameter / DCONMS | 0.3150" | 8.000 mm |
| Drive size / DRVS | 0.2441" | 6.200 mm |
| Premachined hole diameter / PHD | 0.2933" | 7.450 mm |
| Thread cutting part length / THL | 0.7874" | 20.000 mm |
| Usable length / LU | 1.3780" | 35.000 mm |
| Thread pitch / TP | 0.0492" | 1.250 mm |
| Flutes | 5.0000" | 127.000 mm |
| Thread diameter / TD | 0.3150" | 8.000 mm |
| Thread form type / THFT | M | |
| Standard designation | DIN 2174 | |
| Thread tolerance class / TCTR | ISO 2X 6HX | |
| Coating name / Grade (Ceratizit) / COATN | TiN GS | |
Tool Form:
'T' form tools are threading taps, with fixed pitch and nominal diameter equal to the final thread nominal diameter.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
