Description
Ceratizit Article Number: 22367012
Ceratizit Material Number: 2236701200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

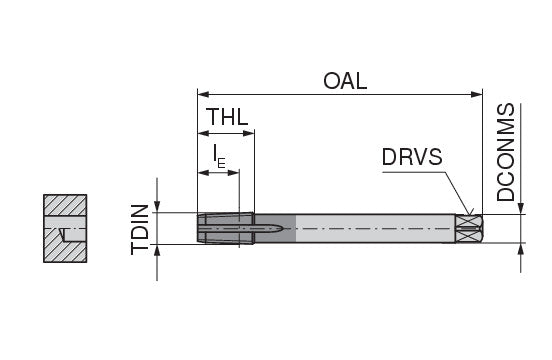

| Properties | ||
|---|---|---|

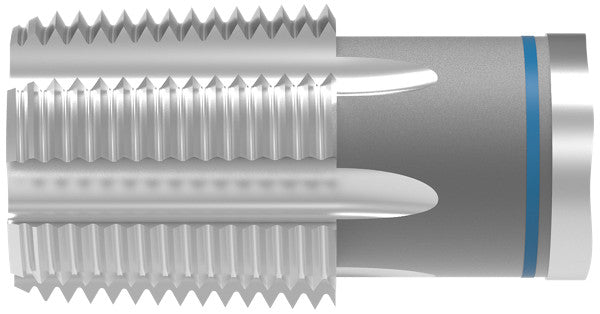

| Name | Ceratizit DuoTap ST ES.NPTF1/8-27.~DIN2181-C CoreLine Through Hole-blind Hole Machine taps, Right-hand 22367012 | |
| EDP # | 0789743 | |
| Weight (1 pc.) | 1.0 oz | 24.5 g |
| Thread Diameter Inch - Range / TDIN | 1/8-27 | |
| Overall length / OAL | 2.4803" | 63.000 mm |
| Mounting spigot diameter / DCONMS | 0.2756" | 7.000 mm |
| Drive size / DRVS | 0.2165" | 5.500 mm |
| Premachined hole diameter / PHD | 0.3327" | 8.450 mm |
| Thread cutting part length / THL | 0.5118" | 13.000 mm |
| Thread pitch / TP | 0.0370" | 0.940 mm |
| Flutes | 5.0000" | 127.000 mm |
| LE | 0.4181" | 10.620 mm |
| Thread diameter / TD | 0.3449" | 8.760 mm |
| Thread form type / THFT | NPTF | |
| Standard designation | ≈DIN 2181 | |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
