Ceratizit DuoTap ST.Rp1/8-28.X.~DIN5156-C CoreLine Through Hole-blind Hole Machine taps, Right-hand 22381012 (0789768)
Ceratizit DuoTap ST.Rp1/8-28.X.~DIN5156-C CoreLine Through Hole-blind Hole Machine taps, Right-hand 22381012 (0789768)
Couldn't load pickup availability
Ceratizit Article Number: 22381012
Ceratizit Material Number: 2238101200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

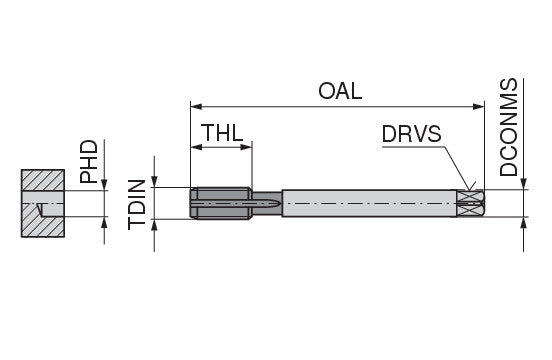

| Properties | ||
|---|---|---|
| Name | Ceratizit DuoTap ST.Rp1/8-28.X.~DIN5156-C CoreLine Through Hole-blind Hole Machine taps, Right-hand 22381012 | |
| EDP # | 0789768 | |
| Weight (1 pc.) | 1.0 oz | 31.4 g |
| Thread Diameter Inch - Range / TDIN | 1/8-28 | |
| Overall length / OAL | 3.5433" | 90.000 mm |
| Mounting spigot diameter / DCONMS | 0.2756" | 7.000 mm |
| Drive size / DRVS | 0.2165" | 5.500 mm |
| Premachined hole diameter / PHD | 0.3386" | 8.600 mm |
| Thread cutting part length / THL | 0.7087" | 18.000 mm |
| Thread pitch / TP | 0.0357" | 0.910 mm |
| Flutes | 4.0000" | 101.600 mm |
| Thread diameter / TD | 0.3830" | 9.728 mm |
| Thread form type / THFT | Rp | |
| Standard designation | DIN 5156 | |
| Thread tolerance class / TCTR | X | |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
