Description
Ceratizit Article Number: 22726062
Ceratizit Material Number: 2272606200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

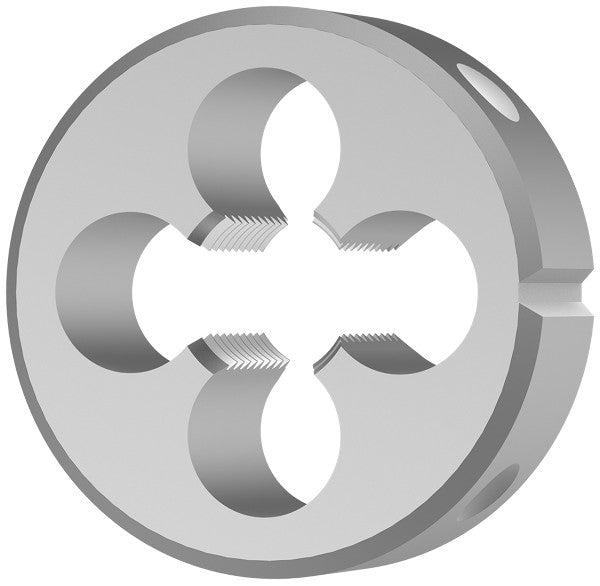

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit FE.UNF5/8-18.2A.~DIN EN22568 CoreLine Dies, Right-hand 22726062 | |
| EDP # | 0790407 | |
| Weight (1 pc.) | 4.0 oz | 122 g |

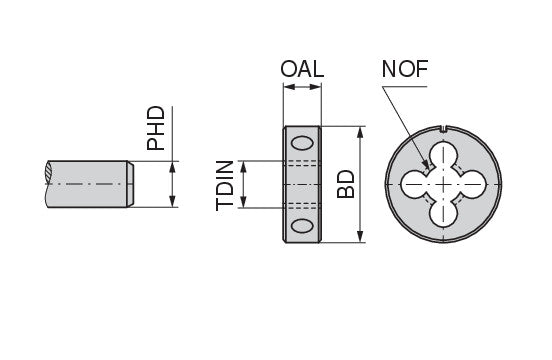

| Thread Diameter Inch - Range / TDIN | 5/8-18 | |
| Overall length / OAL | 0.5512" | 14.000 mm |
| Neck diameter (BD) / BD | 1.7717" | 45.000 mm |
| Premachined hole diameter / PHD | 0.6193" | 15.730 mm |
| Flute count / NOF | 5.0000" | 127.000 mm |
| Thread pitch / TP | 0.0556" | 1.410 mm |
| Thread tolerance class / TCTR | 2A | |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
