Description
Ceratizit Article Number: 22741087
Ceratizit Material Number: 2274108700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

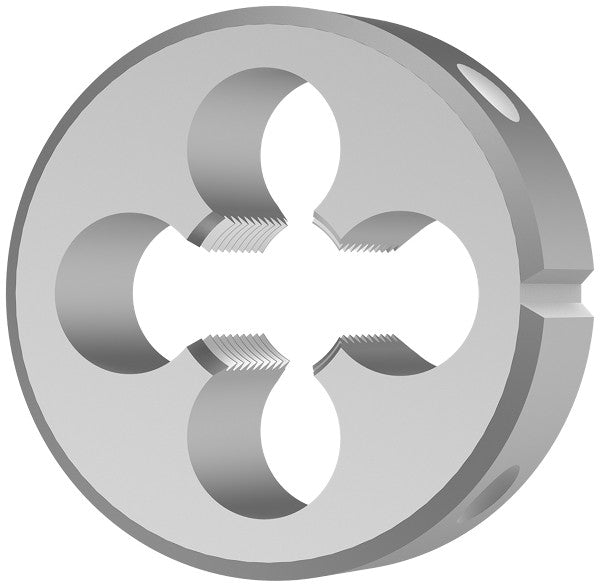

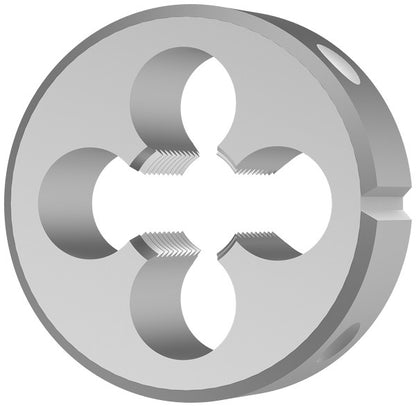

| Name | Ceratizit FE.G7/8-14.ISO228 A.~DIN EN24231 CoreLine Dies, Right-hand 22741087 | |
| EDP # | 0790417 | |
| Weight (1 pc.) | 10.0 oz | 271 g |

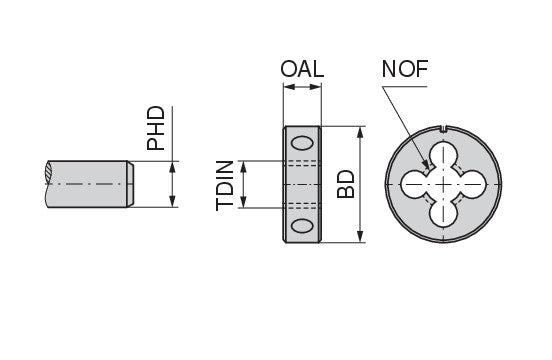

| Thread Diameter Inch - Range / TDIN | 7/8-14 | |
| Overall length / OAL | 0.7087" | 18.000 mm |
| Neck diameter (BD) / BD | 2.5591" | 65.000 mm |
| Premachined hole diameter / PHD | 1.1835" | 30.060 mm |
| Flute count / NOF | 6.0000" | 152.400 mm |
| Thread pitch / TP | 0.0714" | 1.810 mm |
| Thread tolerance class / TCTR | ISO 228 A | |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
