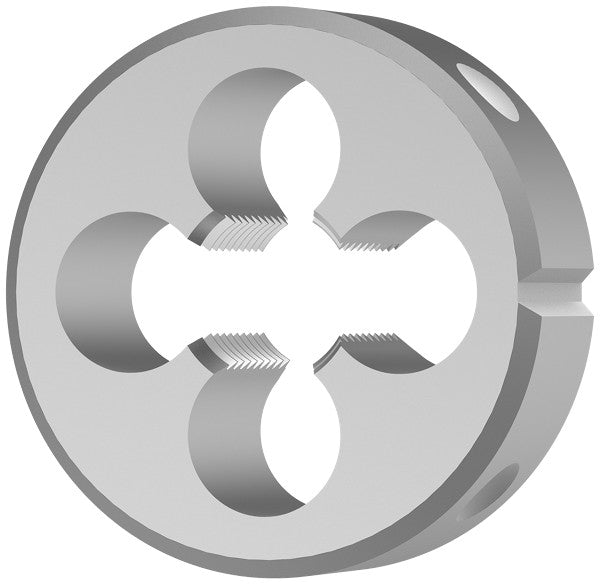

Ceratizit FE.NPT3/4-14.~DIN EN24230 CoreLine Dies, Right-hand 22747075 (0790426)
Ceratizit FE.NPT3/4-14.~DIN EN24230 CoreLine Dies, Right-hand 22747075 (0790426)
Couldn't load pickup availability
Ceratizit Article Number: 22747075
Ceratizit Material Number: 2274707500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

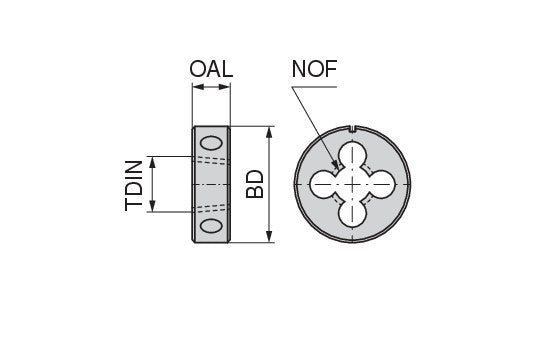

| Properties | ||
|---|---|---|
| Name | Ceratizit FE.NPT3/4-14.~DIN EN24230 CoreLine Dies, Right-hand 22747075 | |
| EDP # | 0790426 | |
| Weight (1 pc.) | 9.0 oz | 243 g |
| Thread Diameter Inch - Range / TDIN | 3/4-14 | |
| Overall length / OAL | 0.8661" | 22.000 mm |
| Neck diameter (BD) / BD | 2.1654" | 55.000 mm |
| Flute count / NOF | 6.0000" | 152.400 mm |
| Thread pitch / TP | 0.0714" | 1.810 mm |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
