Description
Ceratizit Article Number: 30105300
Ceratizit Material Number: 3010530000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

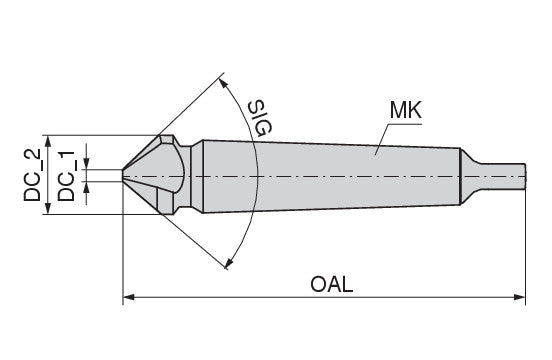

| Properties | ||
|---|---|---|
| Name | Ceratizit SE.N.30,00.90°.D.DIN335.MK2 CoreLine - Countersink 90°, 335-D - 30105300 | |
| EDP # | 0791454 | |
| Weight (1 pc.) | 7.0 oz | 198 g |
| Cutting diameter, 2nd cutting step / DC_2 z9 | 1.1811" | 30.000 mm |
| Cutting diameter, 1st cutting step / DC_1 | 0.1654" | 4.200 mm |
| Overall length / OAL | 4.4094" | 112.000 mm |
| Morse taper adapter size | 2.0000" | 50.800 mm |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
| SIG / SIG | 90 ° | |
Tool Form:
'C' form tools are for chamfering and deburring, available in a large array of tip angles.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
