Description
Ceratizit Article Number: 30115100
Ceratizit Material Number: 3011510000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

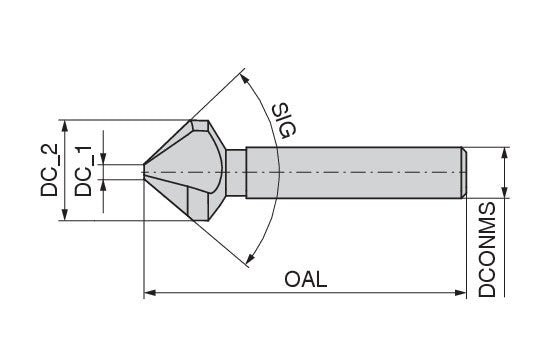

| Properties | ||
|---|---|---|
| Name | Ceratizit SE.N.10,40.90°.C.WN CoreLine - Countersink 90°, Factory Standard-C - 30115100 | |
| EDP # | 0791475 | |
| Weight (1 pc.) | 1.0 oz | 24.2 g |
| Cutting diameter, 2nd cutting step / DC_2 z9 | 0.4094" | 10.400 mm |
| Cutting diameter, 1st cutting step / DC_1 | 0.0984" | 2.500 mm |
| Mounting spigot diameter / DCONMS h9 | 0.3150" | 8.000 mm |
| Overall length / OAL | 1.8110" | 46.000 mm |
| Screw - DIN ISO 7721 | M5 | |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
| SIG / SIG | 90 ° | |
| Minimum Extension (DIN 6535 HA) | 0.3150" - 0.3937" | 8.000 - 10.000 mm |
Tool Form:
'C' form tools are for chamfering and deburring, available in a large array of tip angles.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
