Description
Ceratizit Article Number: 4043101960
Ceratizit Material Number: 4043101960
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit NC.01,96.+0,004/-0,000.B.DIN8093-2 TIALN CoreLine Machine reamers, 8093-2B 100 4043101960 | |
| EDP # | 0791723 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |

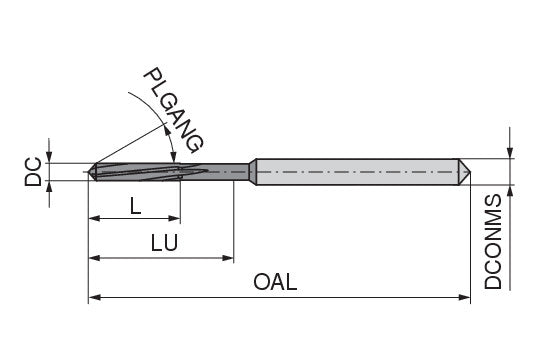

| Cutting diameter / DC +0,004 mm | 0.0772" | 1.960 mm |
| Overall length / OAL | 1.9685" | 50.000 mm |
| Cutting edge length / L | 0.4724" | 12.000 mm |
| Usable length / LU | 0.7283" | 18.500 mm |
| Mounting spigot diameter / DCONMS h6 | 0.1181" | 3.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4.0000" | 101.600 mm |
| Coating name / Grade (Ceratizit) / COATN | TiAlN | |
| Minimum Extension (DIN 6535 HA) | 0.7874" - 0.8661" | 20.000 - 22.000 mm |
Tool Form:
'H' form tools are intended for reaming; where they cannot generate a hole or cut laterally but use their lead-in and flank to improve pre-existing hole quality.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
