Ceratizit K2005C.10.52.152 CoreLine - Shank Copy Milling Cutter - 56110103 (0792551)
Ceratizit K2005C.10.52.152 CoreLine - Shank Copy Milling Cutter - 56110103 (0792551)
Couldn't load pickup availability
Ceratizit Article Number: 56110103
Ceratizit Material Number: 5611010300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit K2005C.10.52.152 CoreLine - Shank Copy Milling Cutter - 56110103 | |
| EDP # | 0792551 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) Stainless Steel (Yellow) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 148 g |
| Product System | K 2005 | |
| Machining process - Main Application | Helical plunging | |

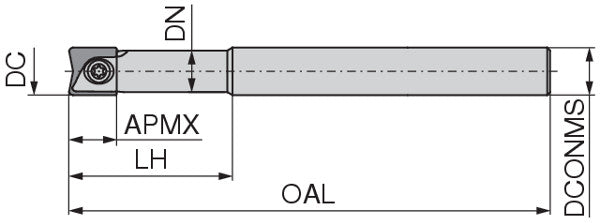

| Cutting diameter / DC | 0.3937" | 10.000 mm |
| Depth of cut maximum / APMX | 0.4528" | 11.500 mm |
| Neck Diameter / DN | 0.3465" | 8.800 mm |
| Overall length / OAL | 5.9843" | 152.000 mm |
| Head length / LH | 2.0472" | 52.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.3937" | 10.000 mm |
| Insert | XO.X 10.. | |
| torque moment | 3 Nm | |
| Face mounted insert count / ZNF | 2 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
