Description
Ceratizit Article Number: 56120081
Ceratizit Material Number: 5612008100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

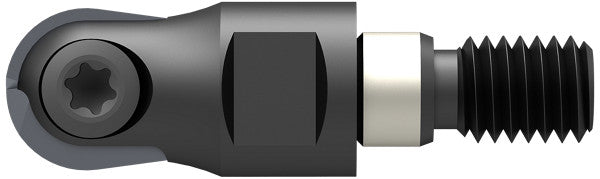

| Name | Ceratizit K2000G.8.25.M6 CoreLine - Screw-in Copy Milling Cutter - 56120081 | |
| EDP # | 0792578 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) HiTemp Alloy (Orange) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 16.2 g |
| Productsystem | K 2000 | |
| Machining process - Main Application | Face milling | |

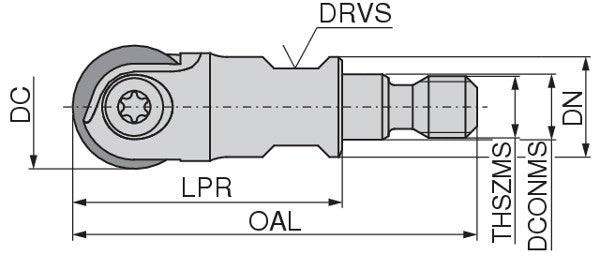

| Cutting diameter / DC | 0.3150" | 8.000 mm |
| Protruding length / LPR | 0.9843" | 25.000 mm |
| Neck Diameter / DN | 0.3937" | 10.000 mm |
| Connection thread nominal size / THSZMS | M6 | |
| Mounting spigot diameter / DCONMS | 0.2559" | 6.500 mm |
| Drive size / DRVS | 0.3150" | 8.000 mm |
| Insert | RO.X 08.. | |
| Overall length / OAL | 1.5551" | 39.500 mm |
| torque moment | 1 Nm | |
| Face mounted insert count / ZNF | 2.0000" | 50.800 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
