Description
Ceratizit Article Number: 5616377600
Ceratizit Material Number: 5616377600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

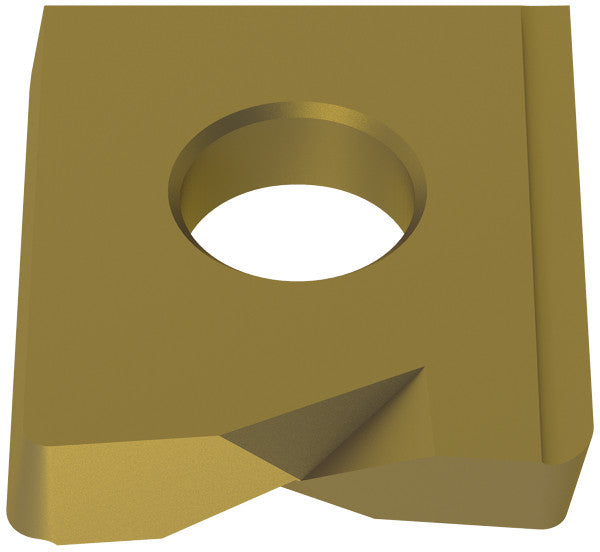

| Name | Ceratizit XOHX 325025-MR6 CTPP211 CoreLine Carbide Torus Milling indexable Insert 5616377600 | |
| EDP # | 0792655 | |
| Weight (1 pc.) | 2.0 oz | 69.2 g |
| designation | 325025.0000" | 8255635.000 mm |
| Corner radius / RE | 0.0984" | 2.500 mm |
| Inscribed circle diameter / IC | 1.2598" | 32.000 mm |
| Fixing hole diameter / D1 | 0.3150" | 8.000 mm |
| Cutting edge length / L | 1.1024" | 28.000 mm |
| Insert thickness / S | 0.1969" | 5.000 mm |
| Insert length / INSL | 1.1024" | 28.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
