Description
Ceratizit Article Number: 5617132100
Ceratizit Material Number: 5617132100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

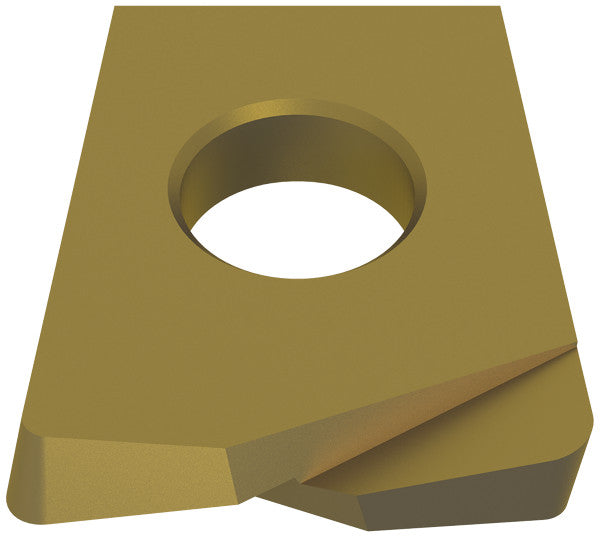

| Name | Ceratizit XOHX 102508-MR3 CTPK231 CoreLine Carbide Torus Milling indexable Insert 5617132100 | |
| EDP # | 0792691 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 102508.0000" | 2603703.200 mm |

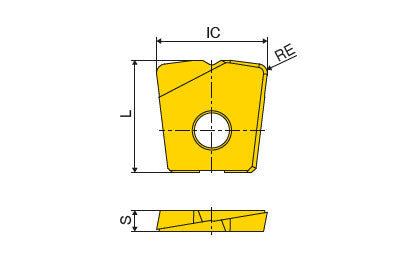

| Corner radius / RE | 0.0315" | 0.800 mm |
| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| Fixing hole diameter / D1 | 0.1575" | 4.000 mm |
| Cutting edge length / L | 0.4528" | 11.500 mm |
| Insert thickness / S | 0.0984" | 2.500 mm |
| Insert length / INSL | 0.4528" | 11.500 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
