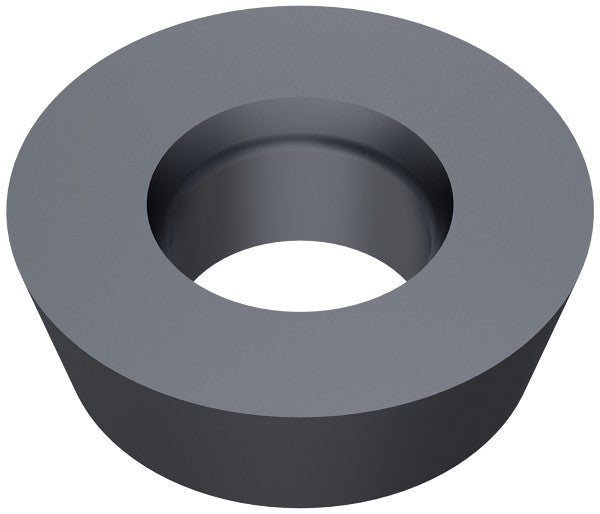

Ceratizit RDHX 1604MOT WTN1205 CoreLine - - 56302151 (0792699)
Ceratizit RDHX 1604MOT WTN1205 CoreLine - - 56302151 (0792699)
Couldn't load pickup availability
Ceratizit Article Number: 56302151
Ceratizit Material Number: 5630215100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit RDHX 1604MOT WTN1205 CoreLine - - 56302151 | |
| EDP # | 0792699 | |
| Weight (1 pc.) | 0.4 oz | 11.6 g |

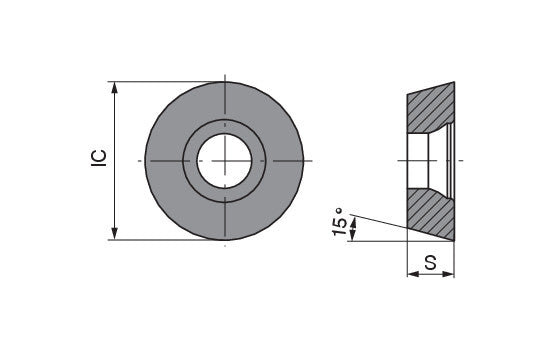

| designation | 1604M0T | |
| Inscribed circle diameter / IC | 0.6299" | 16.000 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Clearance angle major / AN | 15 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
